Ultra-Containment Wall®
Modular, hard-walled bunding system provides long-term, high-capacity spill containment

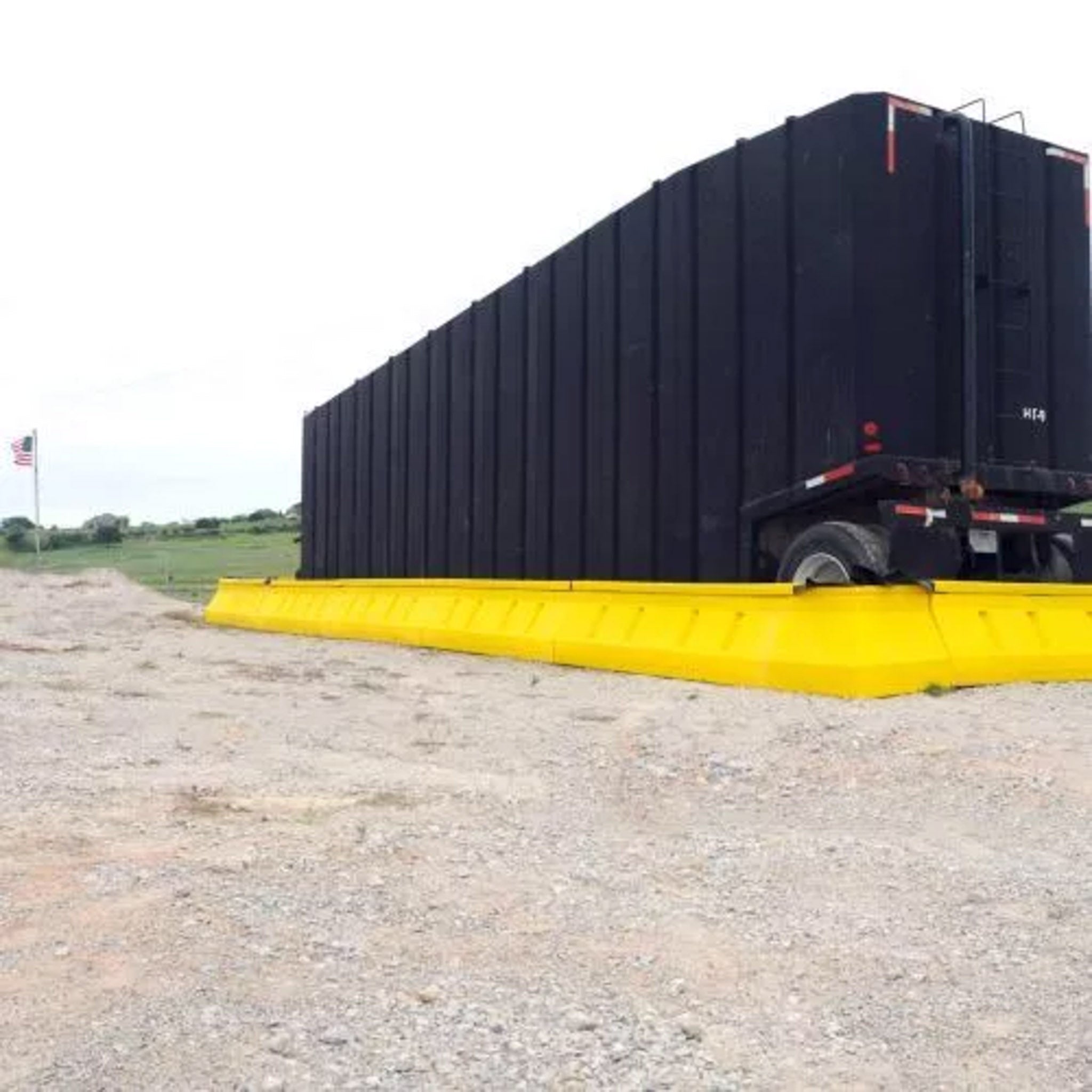

Spill containment, also known as bunding, comes in all types of shapes and sizes. And when it comes to containing really large vessels like frac tanks, tanker trucks, and other large vehicles the Ultra-Containment Berm is often the solution.

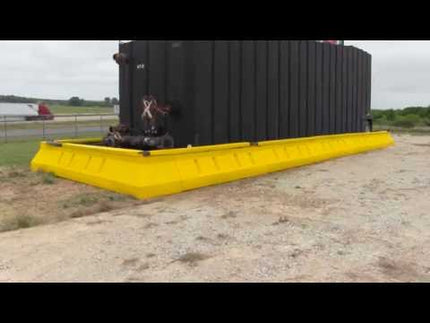

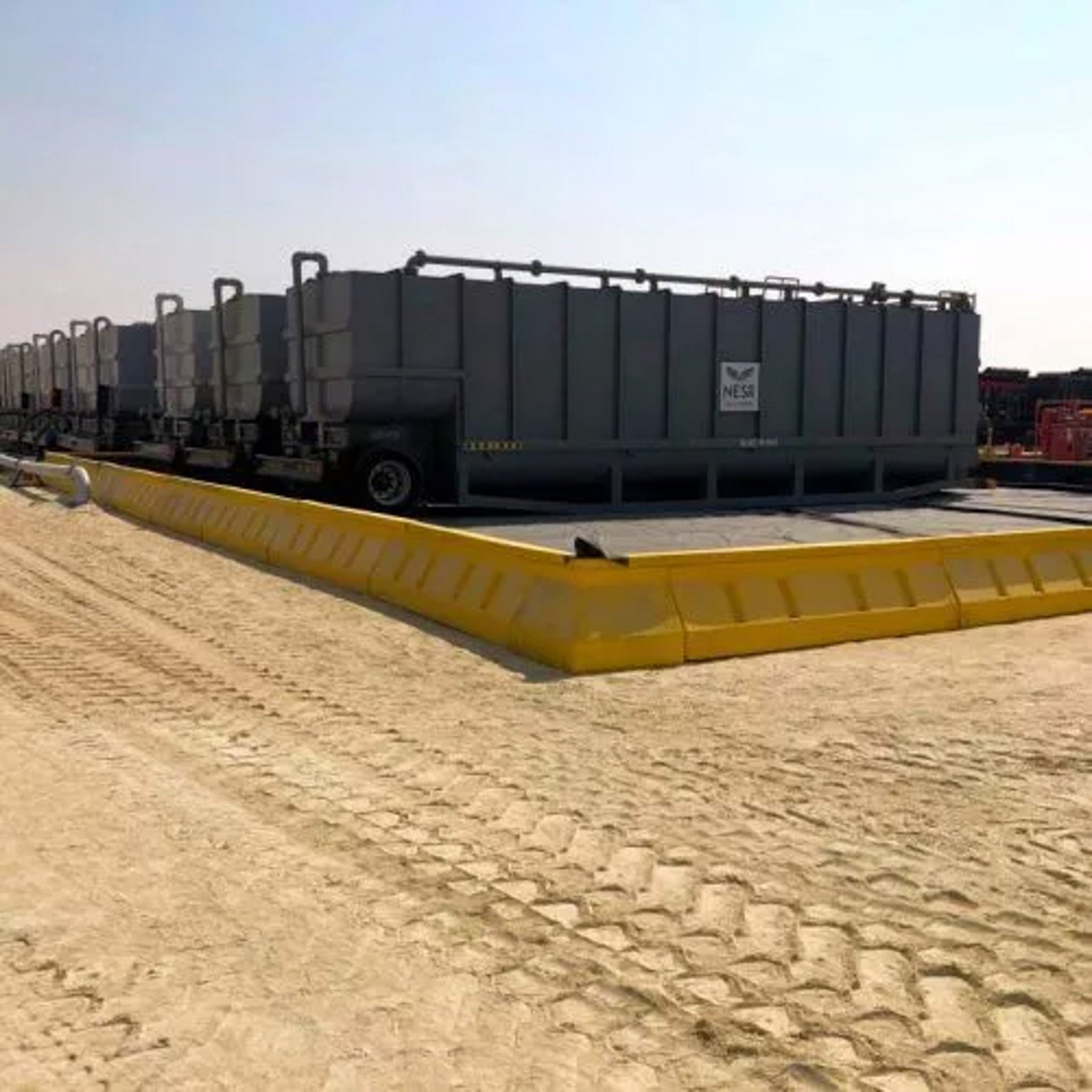

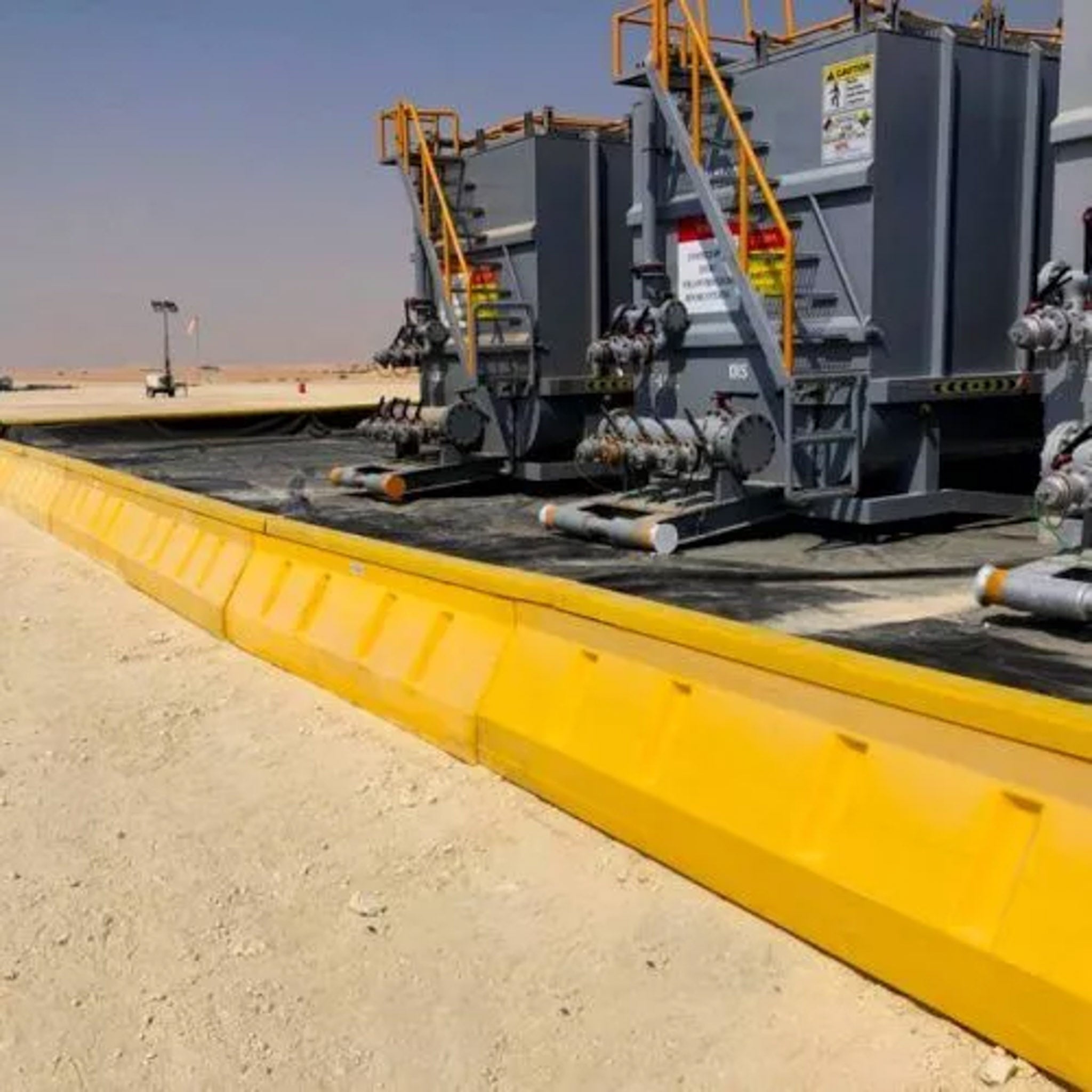

But when spill containment needs to be “super-sized,” a product like the Ultra-Containment Wall is necessary. The hard-walled, high-capacity spill containment bund wall system is ideal for multiple vehicle containment areas like those found in the oilfields or when a taller wall / more containment capacity is necessary. The modular bund walls and corners can be quickly set up and reconfigured as containment needs change.
Product Highlights
- Modular bund wall sections and corners can be easily assembled to form almost any size/shape spill containment area needed.
- Heavy-duty, 30 mil, textured polyethylene (LLDPE) liner provides rugged, impermeable barrier to capture leaks and spills.
- Creates large, semi-permanent containment areas. Provides significantly more gallon capacity than shorter walled containment systems.
- A versatile bunding system that can be easily disassembled for reuse at future sites.

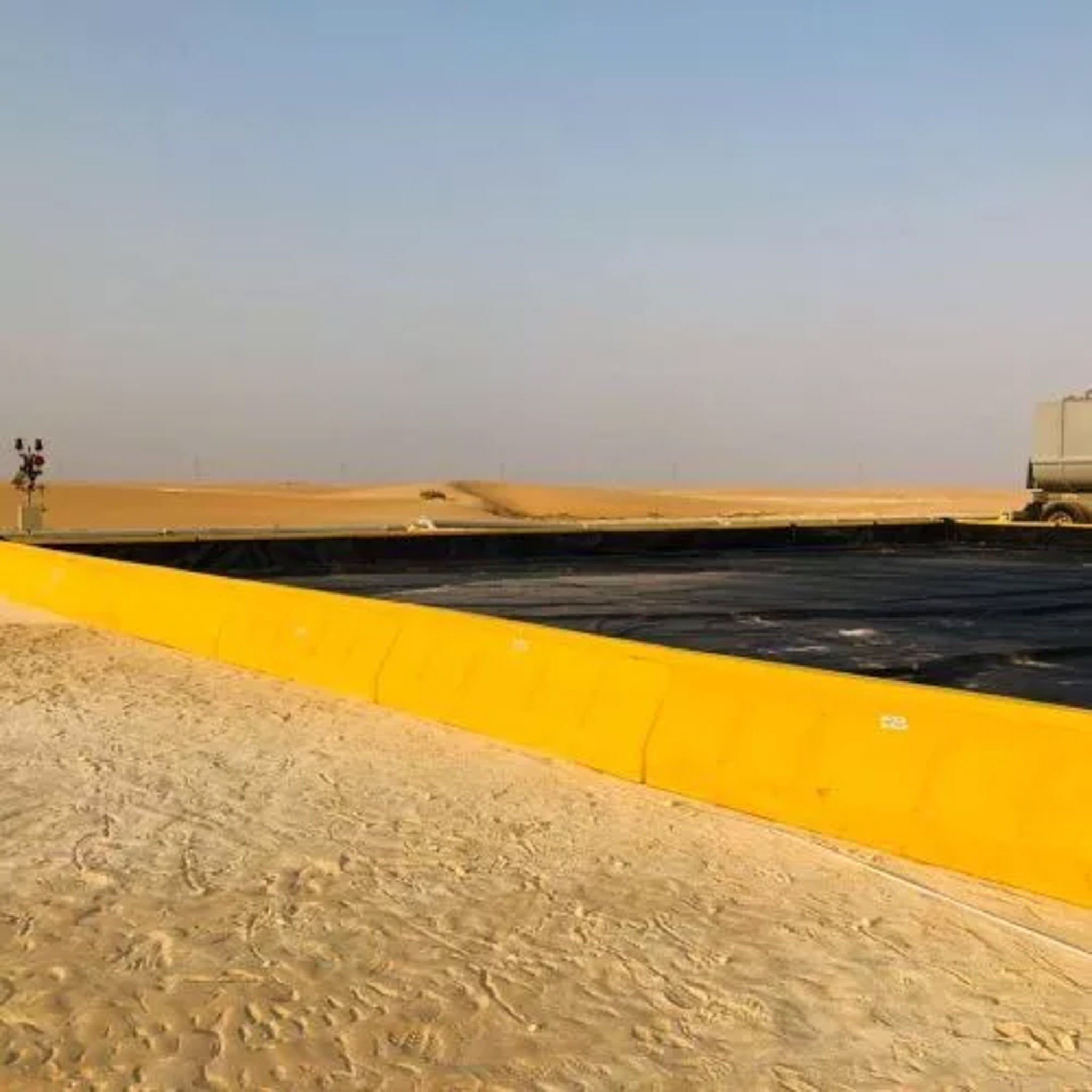

- Unlike some containment systems, the Ultra-Containment Wall is not secured to the substrate so it is perfect for use in parking lots, sand, rocky soil, muddy soil, frozen soil or on concrete areas.
Additional Information
- Wall section lengths: 1-ft high – approximately 10’; 2-ft high – approximately 8’; 3-ft high – approximately 6’

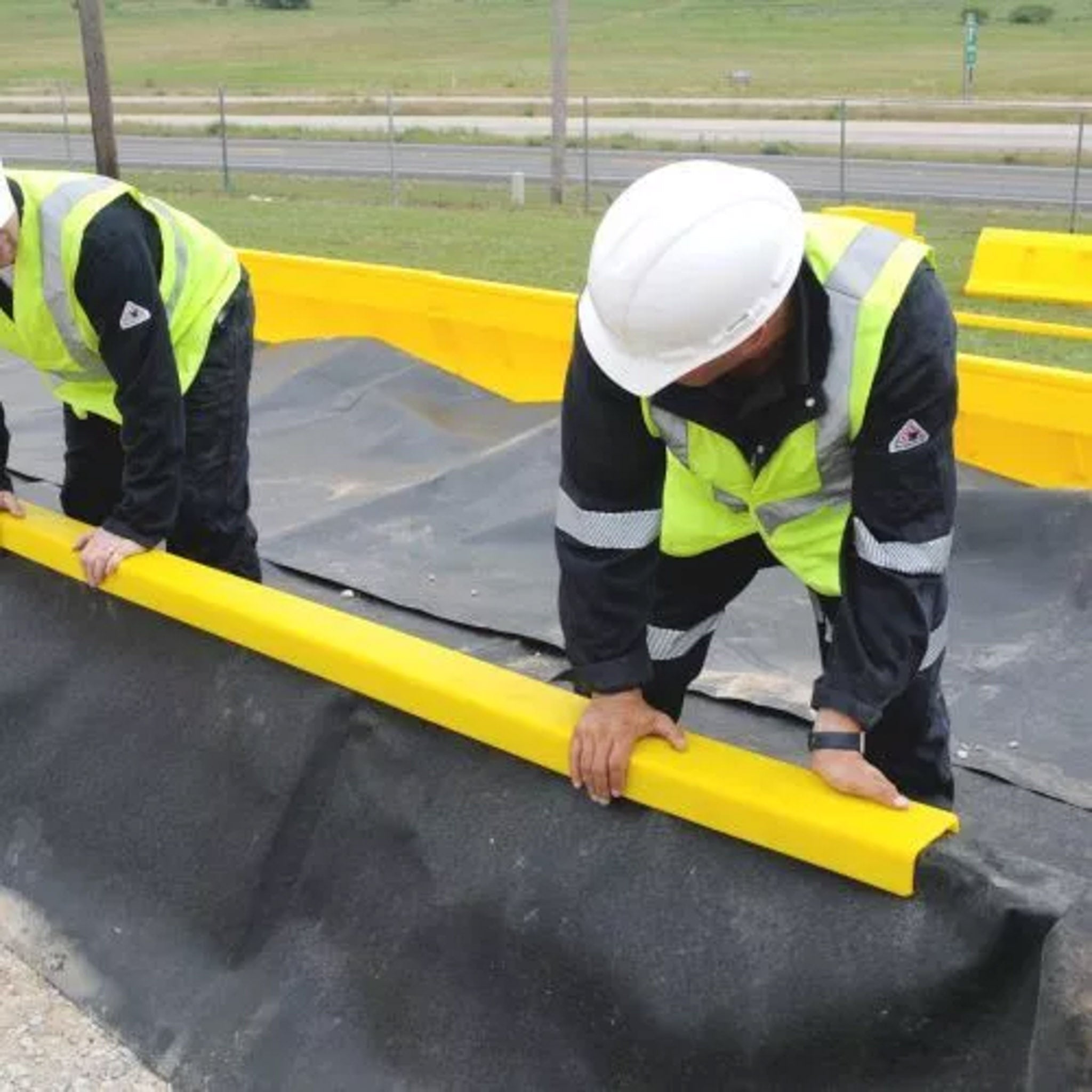

- The 30 MIL polyethylene (LLDPE) textured liner is held on the walls with 8-foot long clips. These clips snap over the liner and the straight section walls (see image in gallery).
- Sizes you may need: 1-ft wall – we recommend 5 feet extra on each side; 2-ft wall – we recommend 10 feet extra on each side; 3-ft wall – we recommend 15 feet extra on each side
- Please note that our liners are made from rolls of material that are 12 feet wide. So the liner that comes with your Ultra-Containment Wall system may be considerably larger than the overall footprint of the system. Any excess material can easily be trimmed with a utility knife.

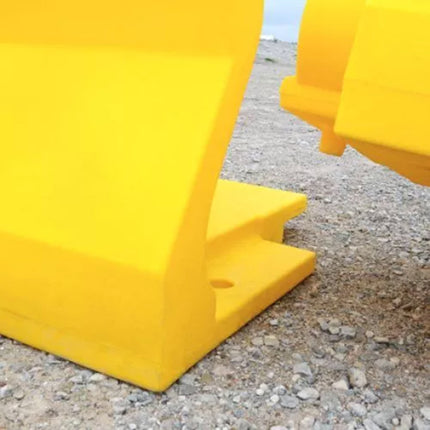

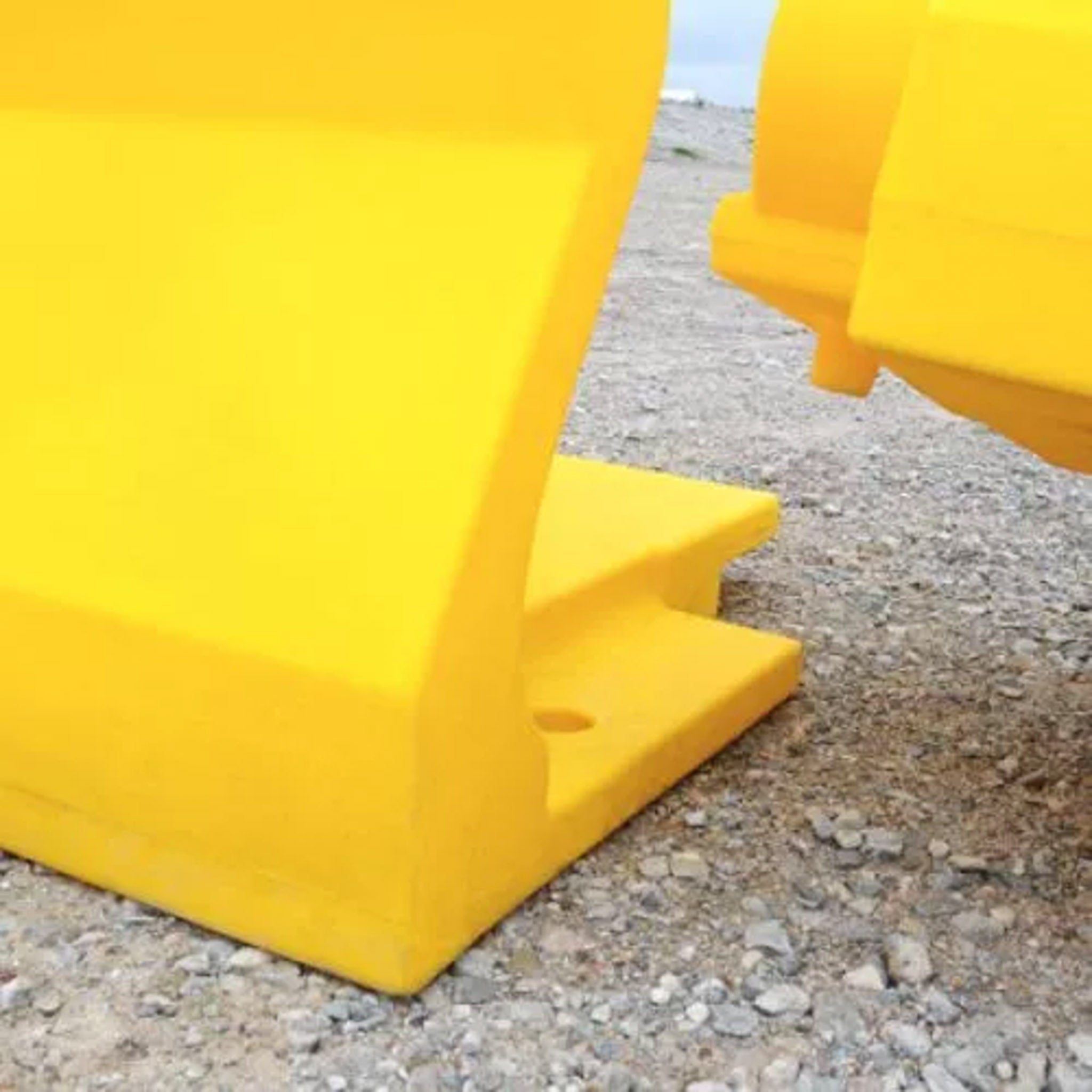

- The components overlap when connected to provide additional support/security. Because of this overlap, the overall dimension of a system is shorter.
- Custom colors are available. Please contact us for more information and minimum purchase quantities.
- At this time, the 1, 2 and 3-foot heights are the only ones that are available.

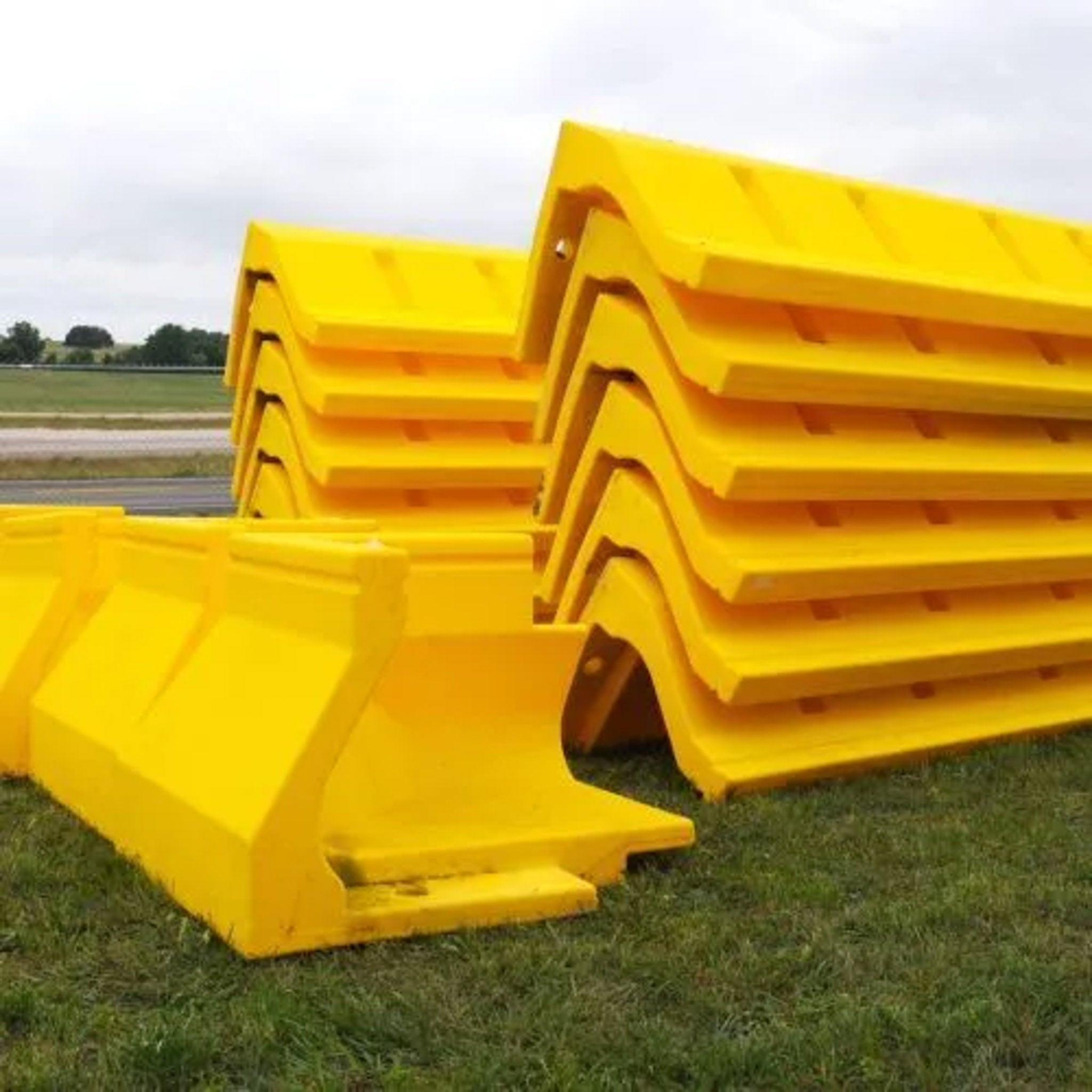

- The walls stack for easier storage and shipping.
- Because of the design of the system, a drain cannot be installed.
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112

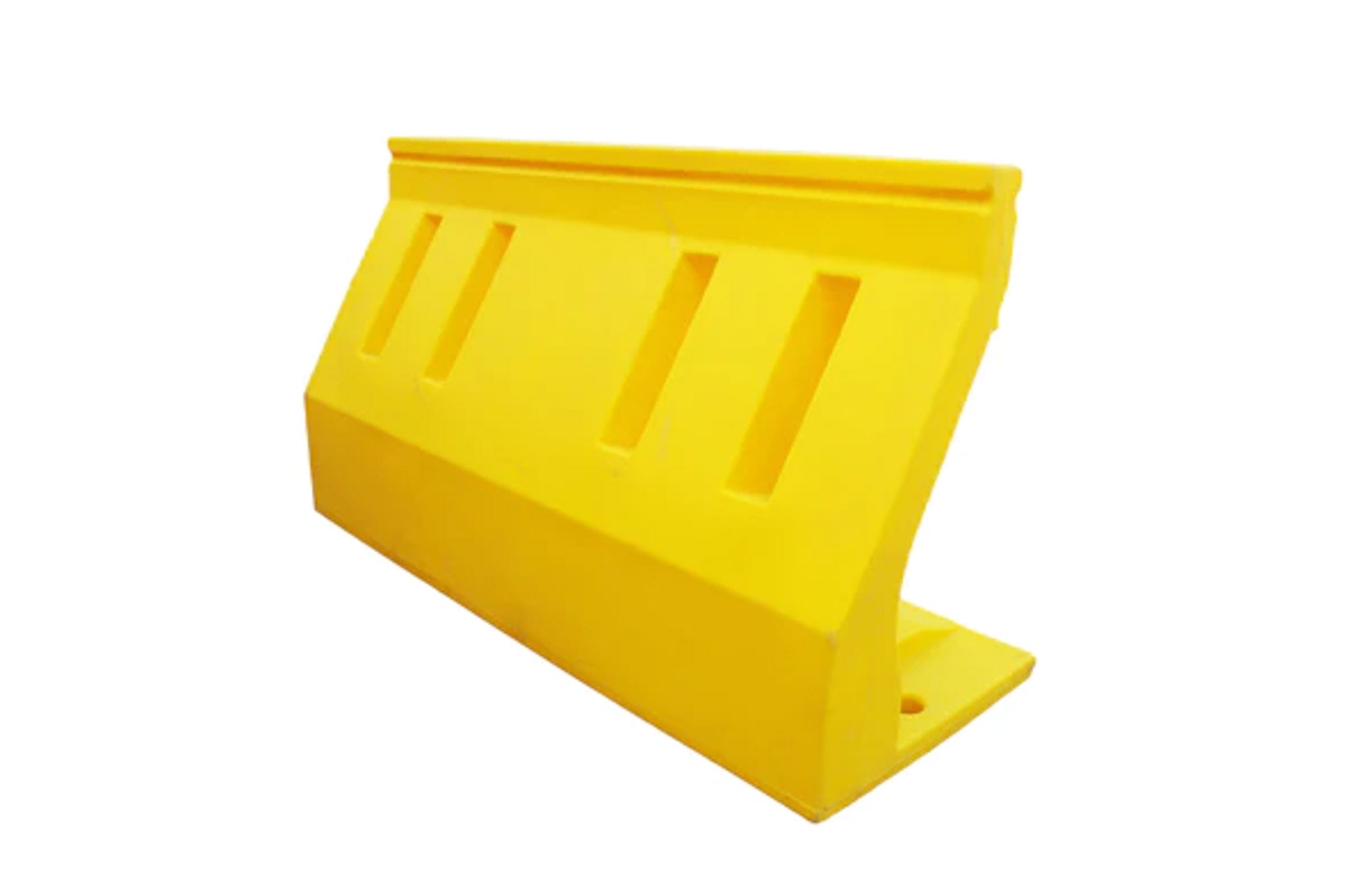

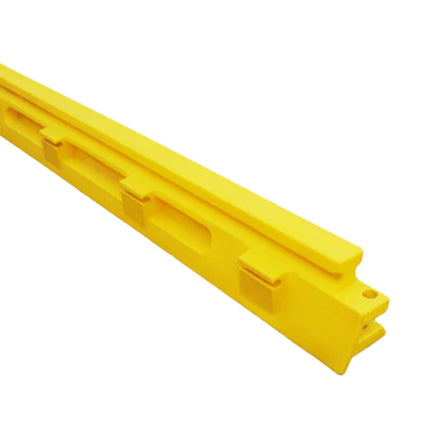

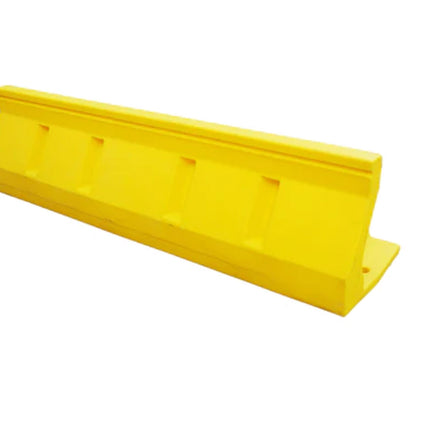

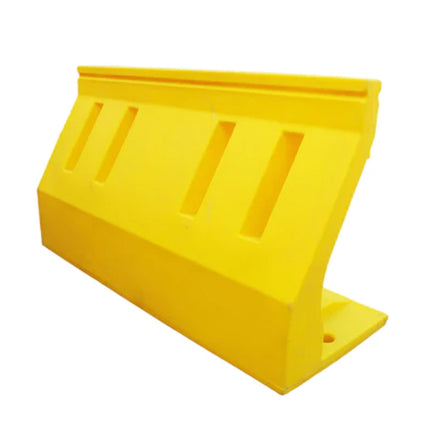

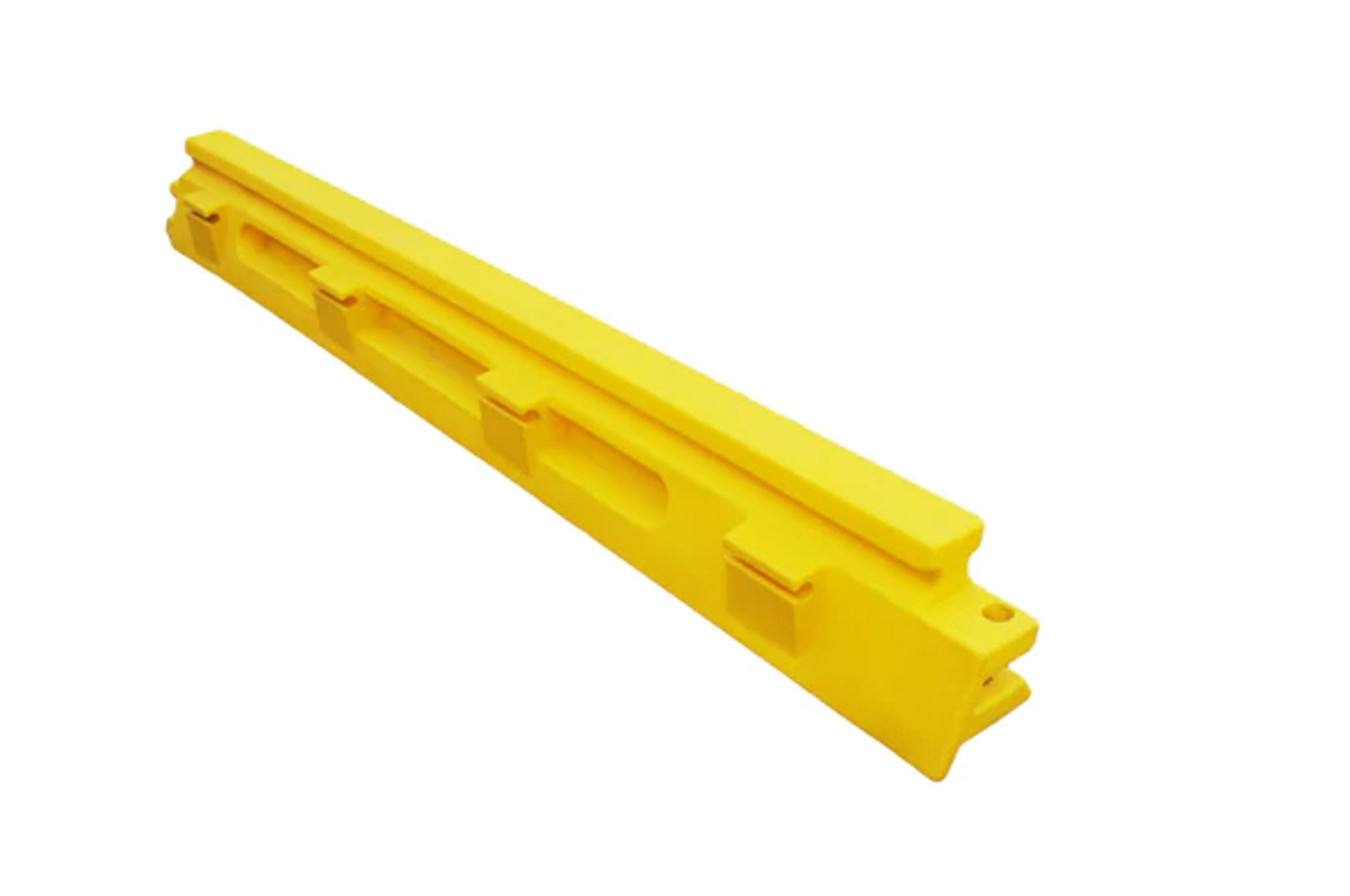

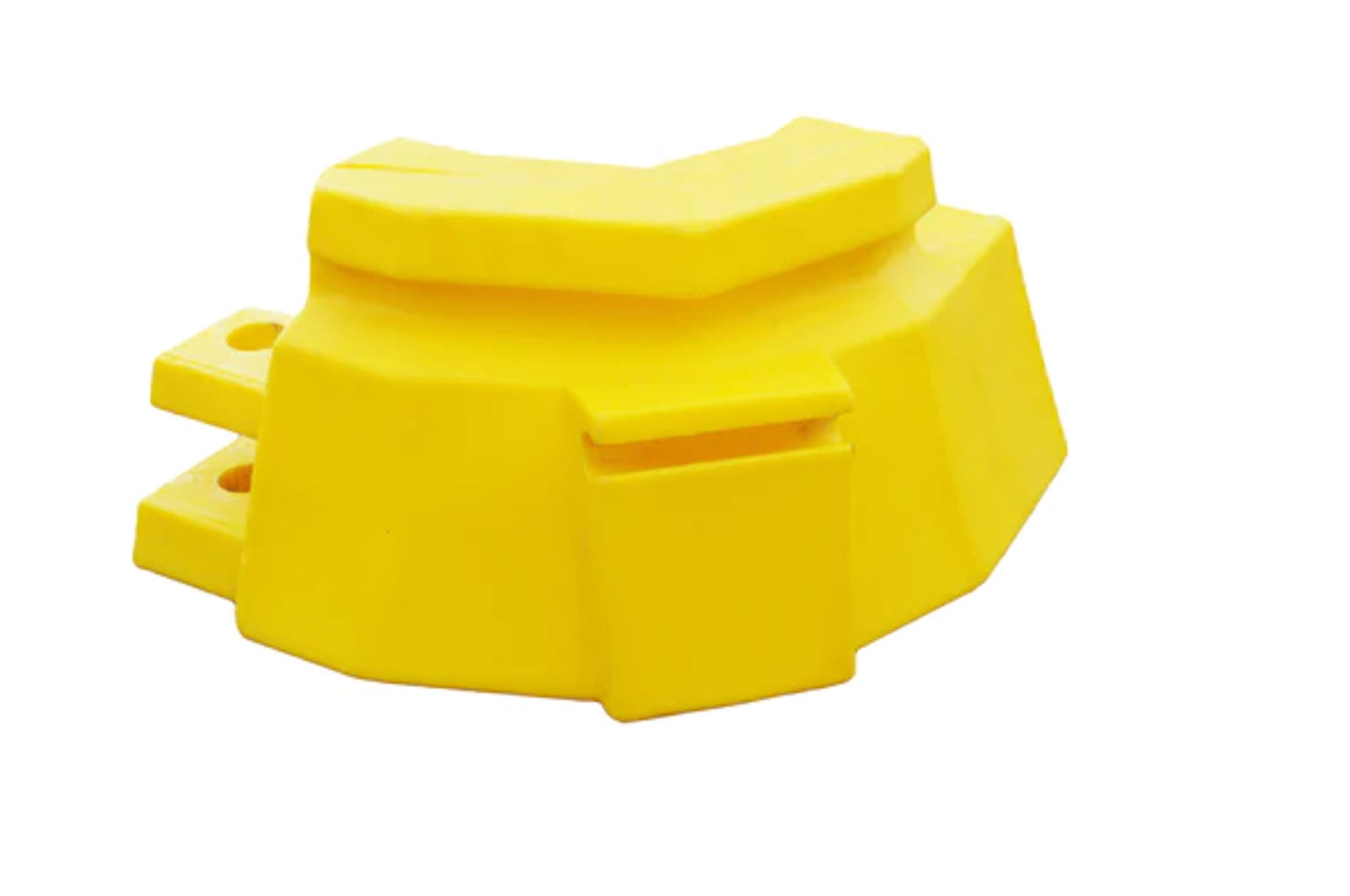

Ultra-Containment Wall - Components
| Model | Dimensions (in.) | Weight (lbs) |

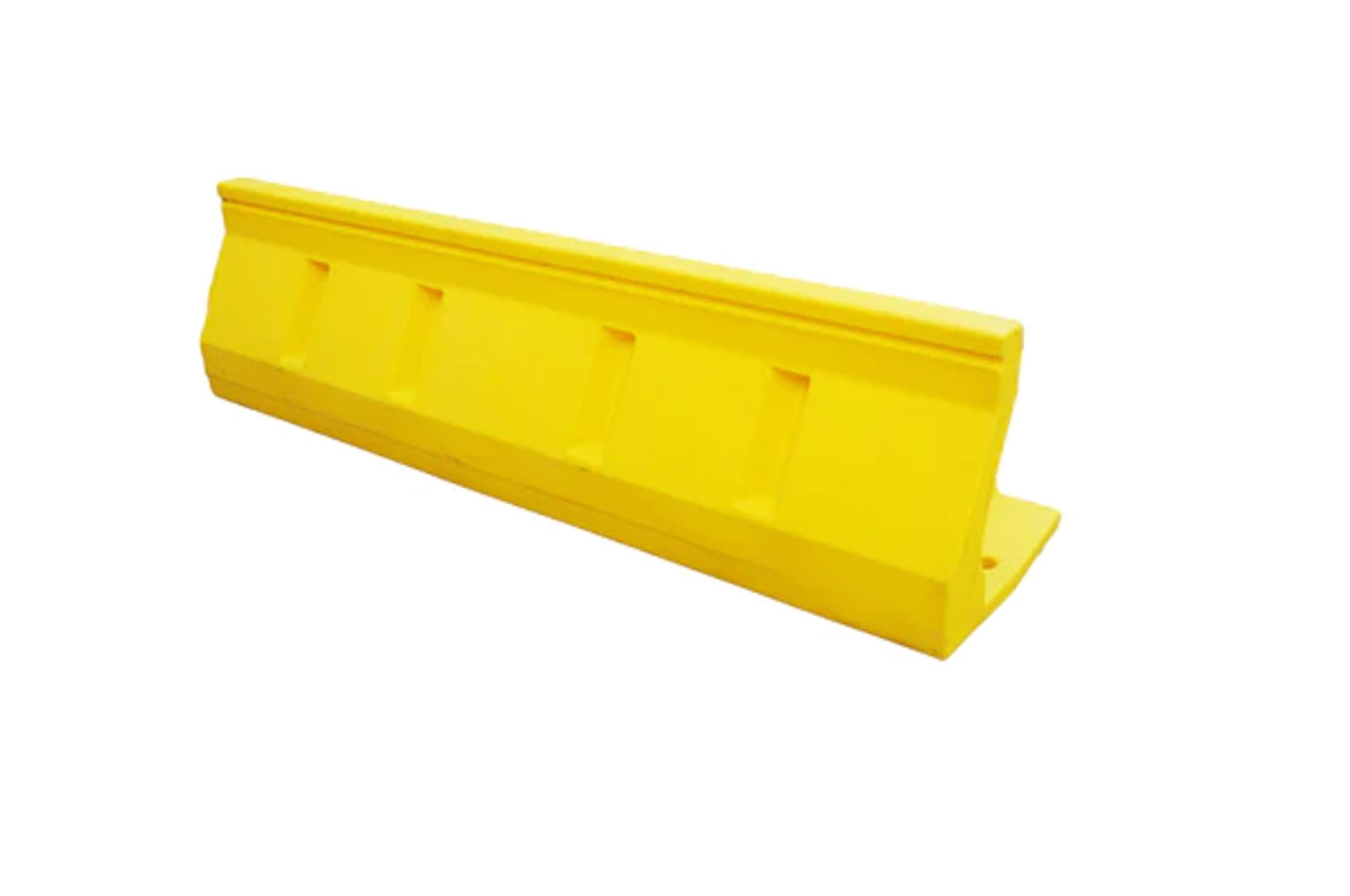

| 1 ft. - Straight Section | 119.5 x 12 x 12 | 33 |

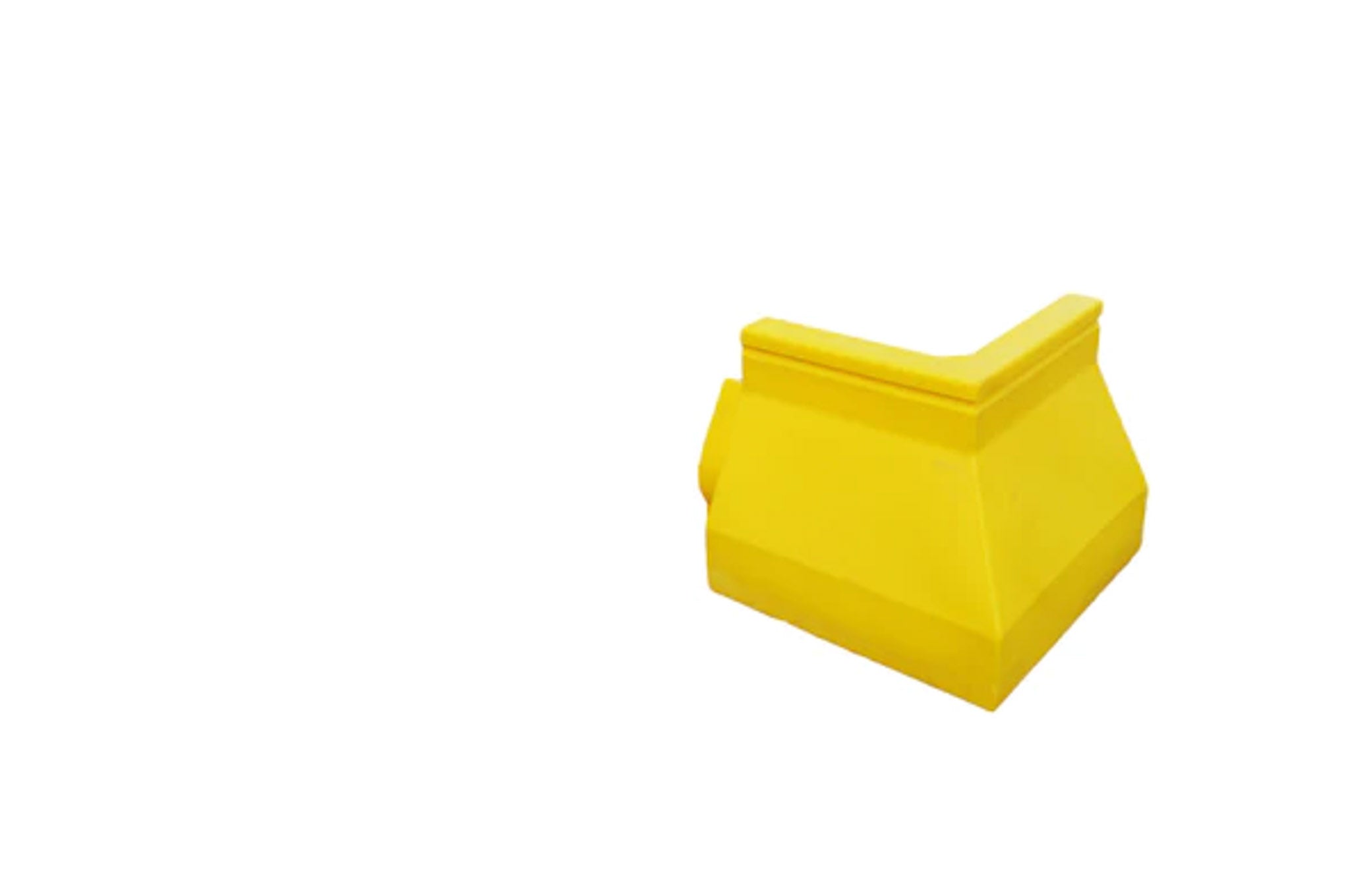

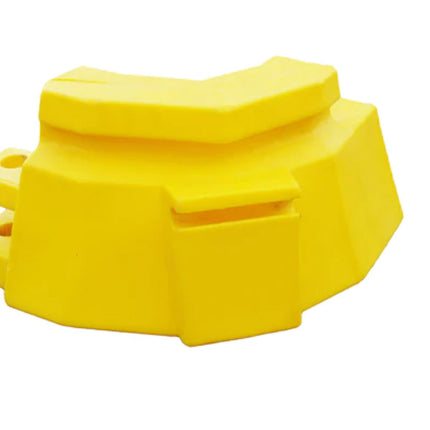

| 1 ft. - Corner Section | 21.9 x 21.9 x 12 |
9 |
| 2 ft. - Straight Section | 99.8 x 24 x 24 | 70 |
| 2 ft. - Corner Section | 35.3 x 29.3 x 24 | 26 |
| 3 ft. - Straight Section | 72 x 24 x 36 | 60 |
| 3 ft. - Corner Section | 30 x 30 x 36 | 36 |
| 30 ml Textured Polyethylene Liner | Varies - Call for pricing | Varies - Call for pricing |
Ultra-Containment Wall - Systems
| Dimensions (ft.) | Quantity | Containment Capacity (gal) | Weight (lbs) |
| 10 x 49 x 1 | 12-Straight, 4-Corners, 1-Liner (15 x 62.5 ft) | 3978 | 754 |
| 68 x 68 x 1 | 28-Straight, 4-Corners, 1-Liner (75 x 75 ft) | 34802 | 2066 |
| 16 x 55 x 2 | 18-Straight, 4-Corners, 1-Liner (25 x 65 ft) | 13716 | 1821 |
| 11 x 55 x 3 | 32-Straight, 4-Corners, 1-Liner (75 x 75 ft) | 60089 | 3450 |
| 11 x 55 x 3 | 24-Straight, 4-Corners, 1-Liner (25 x 70 ft) | 14336 | 2157 |
| 61 x 61 x 3 | 44-Straight, 4-Corners, 1-Liner (75 x 75 ft) | 83582 | 3958 |
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
