Ultra-Containment Berm® Ultimate Model
Unique, living hinge design allows hands-free drive in/drive out—no need to manually raise or lower the end walls

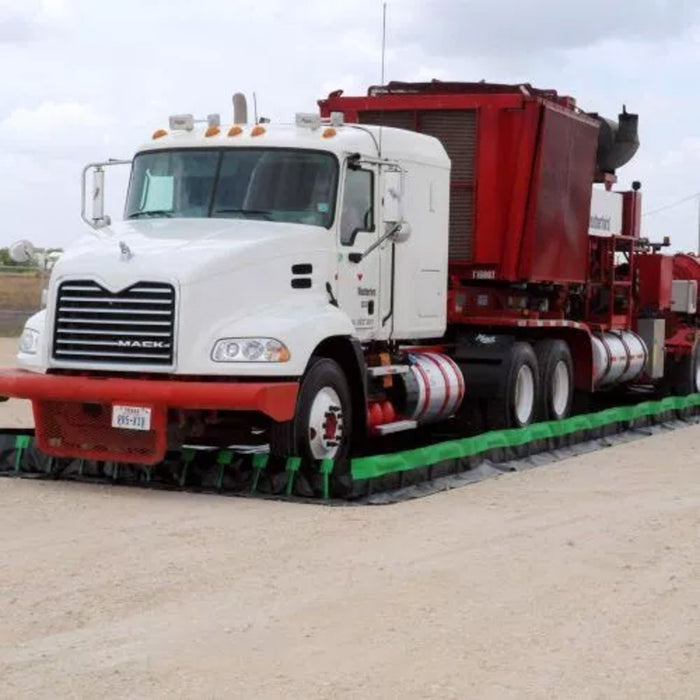

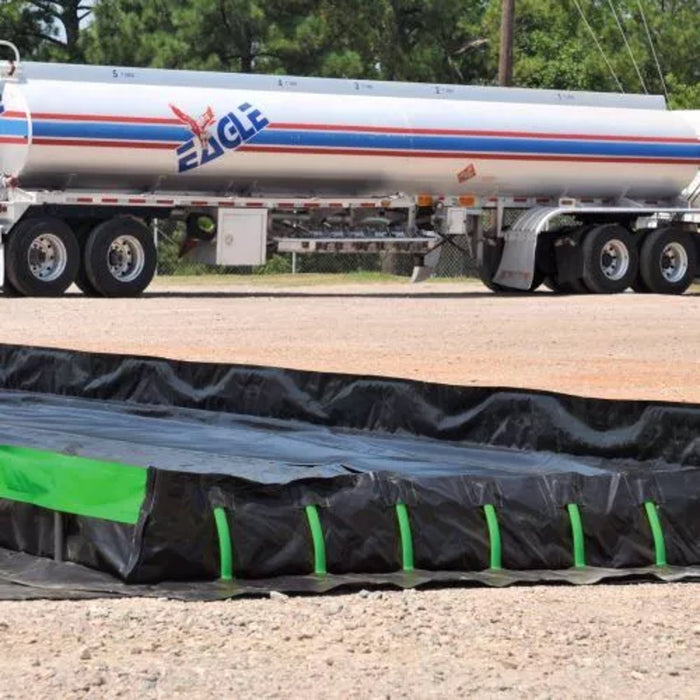

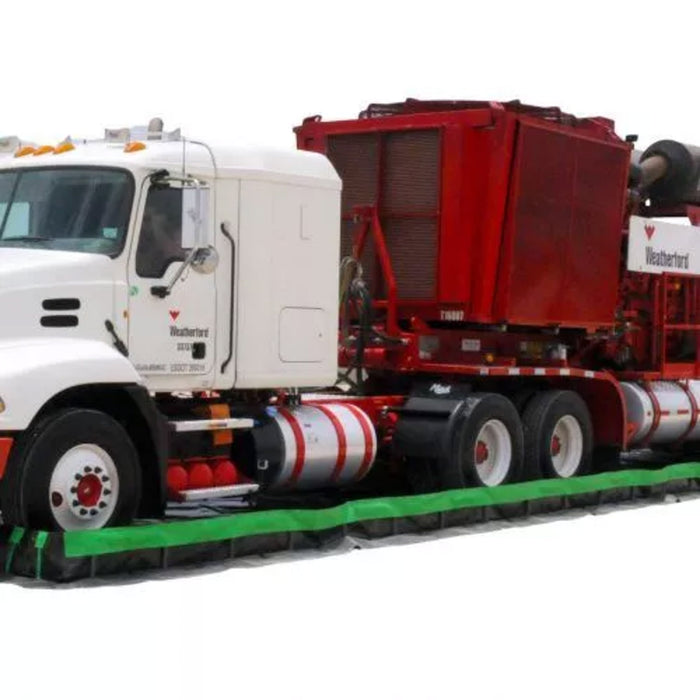

The Ultra-Containment Berm Ultimate Model is the perfect combination of convenience and economy when it comes to capturing leaks and spills that often occur during equipment maintenance or the transportation of containment drums. This spill containment berm features 12” walls that are supported with a unique “living hinge” that gives them the ability to bend under equipment and snap back into place.
Product Highlights
- No need to manually raise or lower the end walls.

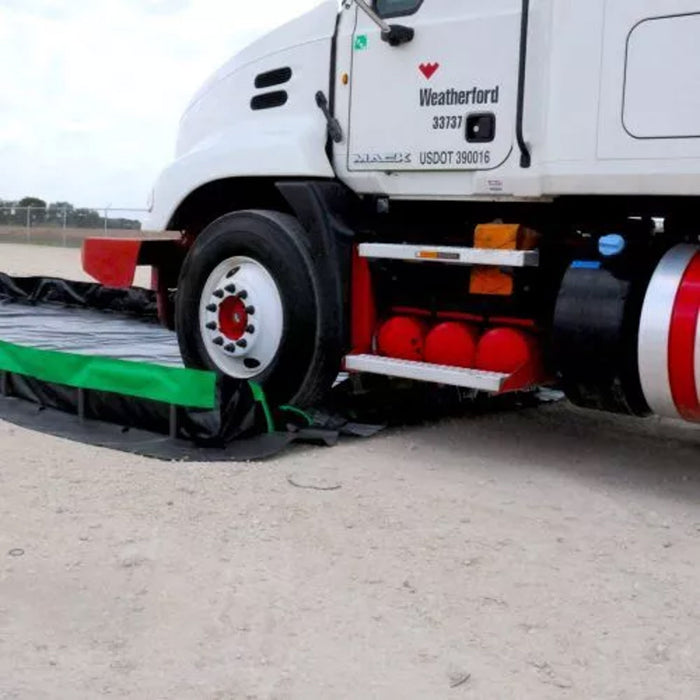

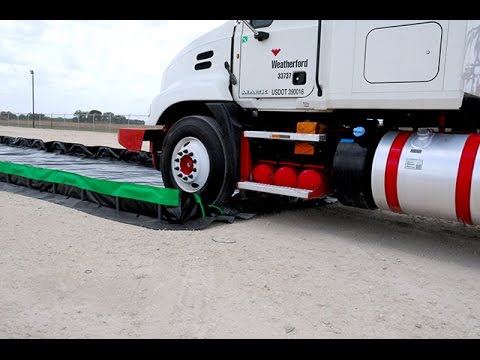

- Once a vehicle has entered or exited, the walls automatically spring back to their vertical position.

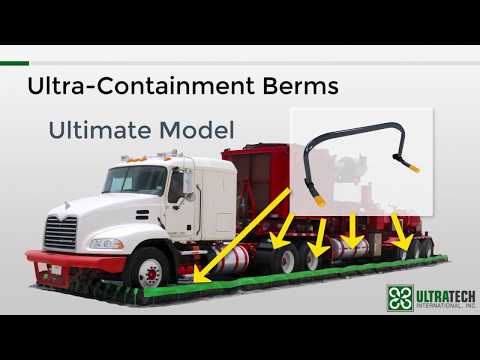

- Both long sidewalls are held upright by PVC sidewall assemblies. Simply swivel the feet to lower the sidewalls for storage or transport to another location.

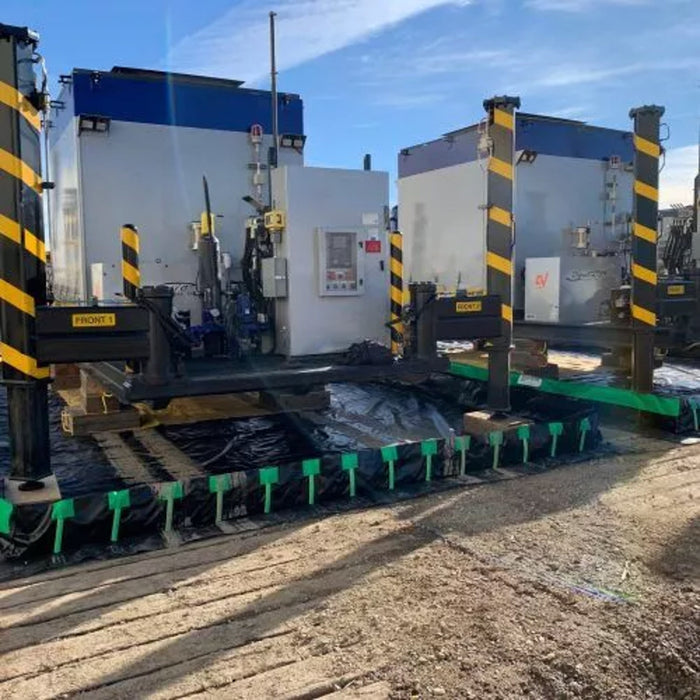

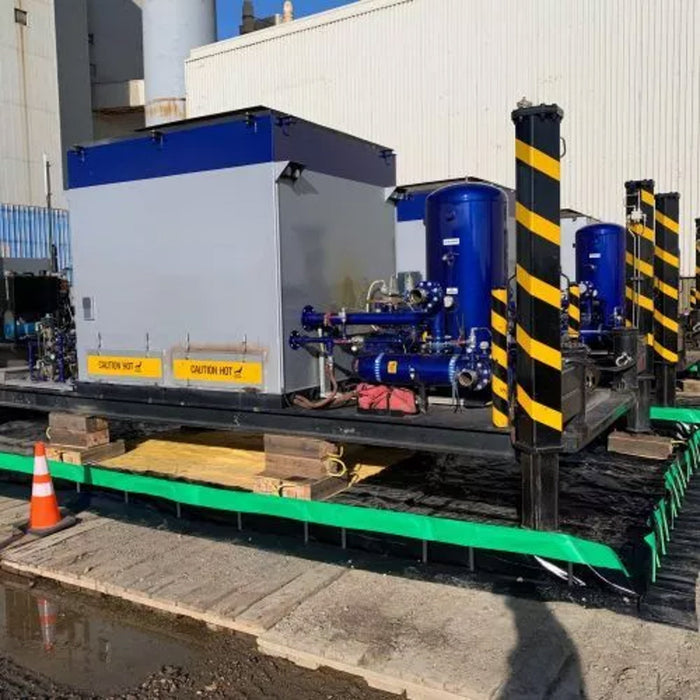

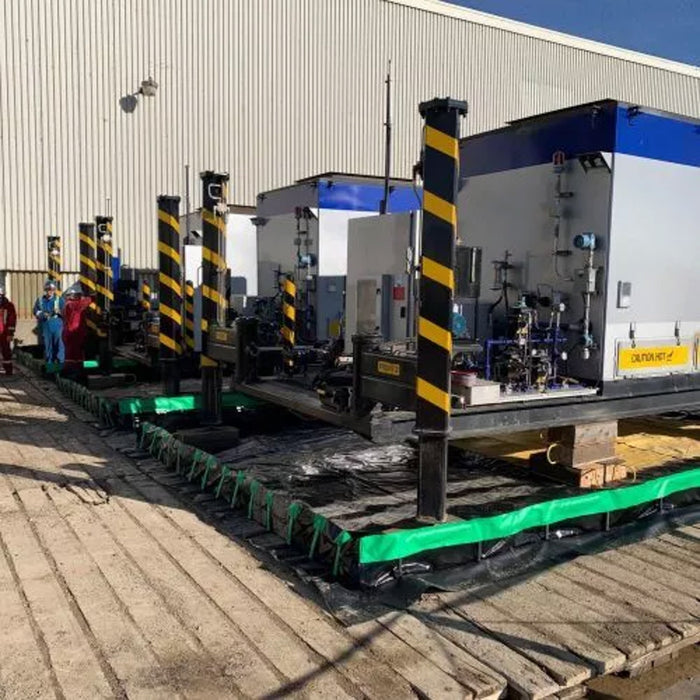

- Convenient and economical spill containment for drums, IBCs, vehicles, equipment, frac tanks, and other large containers.
- Available in Copolymer 2000™ and other rugged materials.
Additional Information
- Operating temperatures: PVC: Max 150°F, Min: -20°F; Copolymer-2000: Max 160°F, Min: -25°F
- Material weights: Copolymer 2000 – 25 oz. / sq. yard; PVC – 22 oz. / sq. yard
- We can make containment berms in custom sizes in virtually any length and width.
- Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.
- Ultra-Containment Berms ship at class 125.
Ultra-Containment Berms - Ultimate Model - Copolymer-2000
| Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|
| 4 x 6 x 1 (1.2 x 1.8 x .3) | 179 (677) | 72 (32.7) |
| 10 x 10 (3.0 x 3.0) | 748 (2831) | 176.0 (79.8) |
| 12 x 26 (3.7 x 7.9) | 2,333 (8,831) | 189.0 (85.7) |
| 12 x 30 (3.7 x 9.1) | 2,692 (10,190) | 256.0 (116.1) |
| 12 x 36 x 1 (3.7 x 11 x .3) | 3,231 (12,230) | 283.0 (128.4) |
| 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 297.0 (134.5) |
| 14 x 54 x 1 (4.3 x 16.5 x .3) | 5,655 (21,406) | 368 (166.9) |
| 14 x 56 x 1 (4.3 x 17.1 x .3) | 5,864 (22,197) | 408.0 (185.1) |
| 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 326 (147.9) |
| 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 405 (183.7) |
WARNING: All part numbers on this page can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
