Ultra-Dewatering Bags® Oil & Sediment Model
by UltraTech
Original price
$29.00
-
Original price
$474.00
Original price
$29.00
$29.00
-
$474.00
Current price
$29.00
Contain silt, sediment and oil pumped out during dewatering operations
Draining swampy or low-lying areas is a common occurrence in construction. Unfortunately, pumping out the water from these areas also removes a lot of dirt, silt, mud, and debris along with the water. These contaminants can cause problems if they are simply discharged into a storm drain.

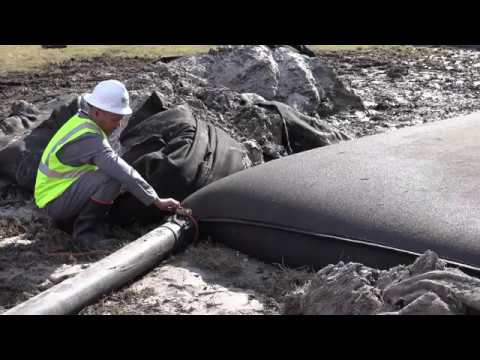

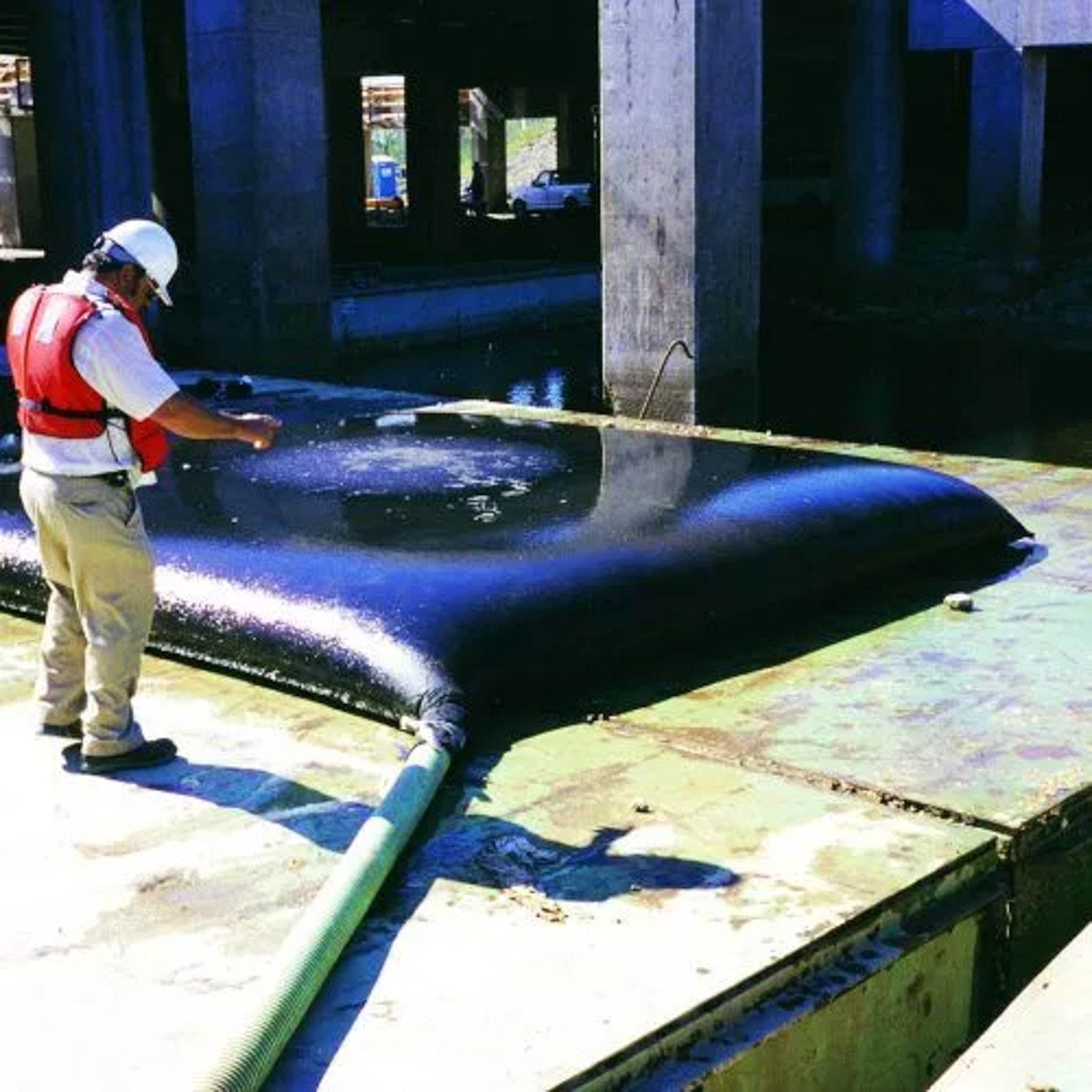

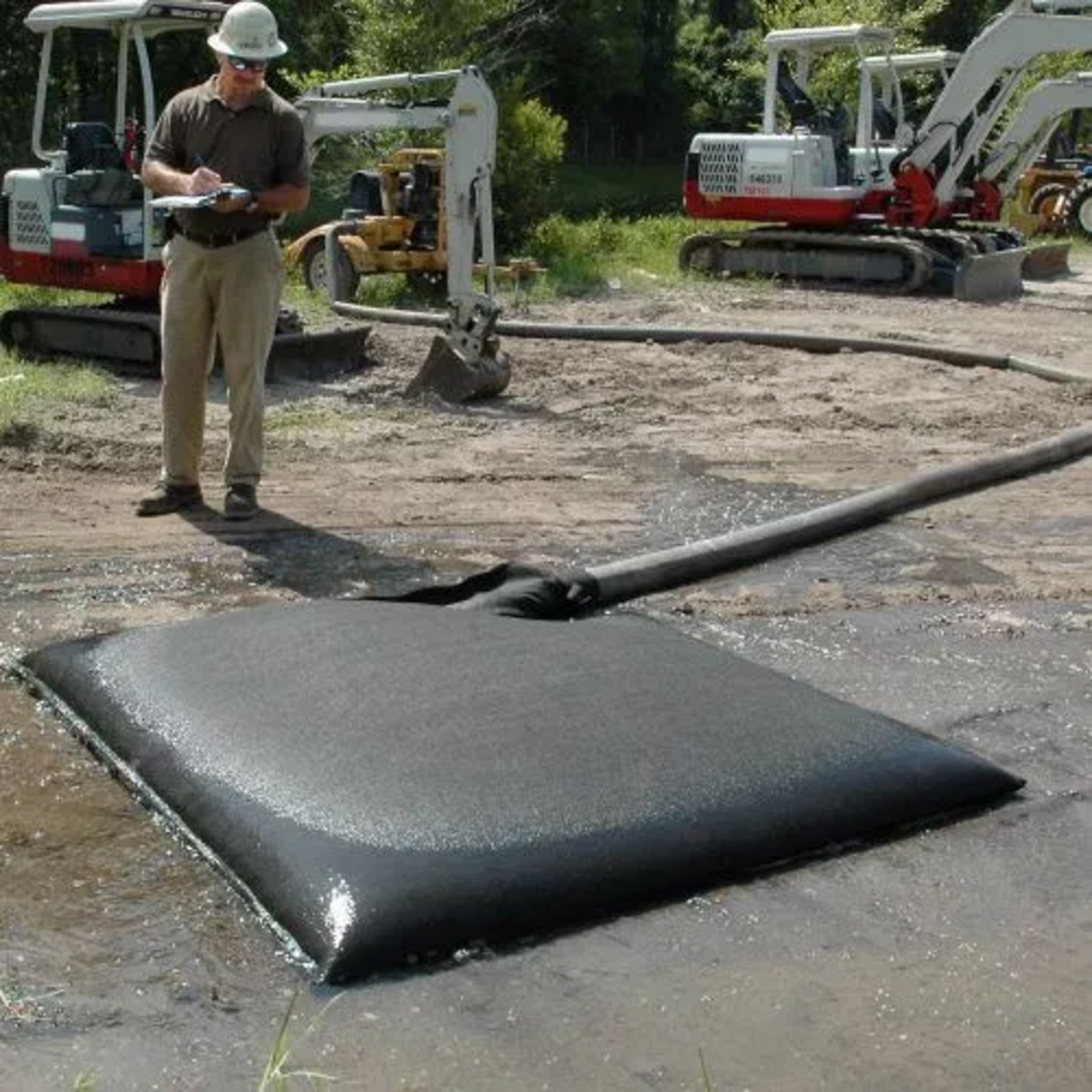

The Ultra-Dewatering Bag provides an economical and effective solution. By pumping water into the bag, silt, dirt, sand and other pollutants are trapped and filtered so only water escapes to the ground below or nearby storm drains.
NOTE: To increase the efficiency of filtration, the bag can be placed on an aggregate or haybale bed to maximize water flow through the surface area of the bag.
Product Highlights
- Detains both oil and sediment/silt, offering a combination of benefits not available in alternative dewatering bags.
- Standard and custom sizes available.
- Accommodates up to 4-inch discharge hose.
- Optional hose connector available - makes connecting and disconnecting Ultra-Dewatering Bags quick and easy.
Additional Information

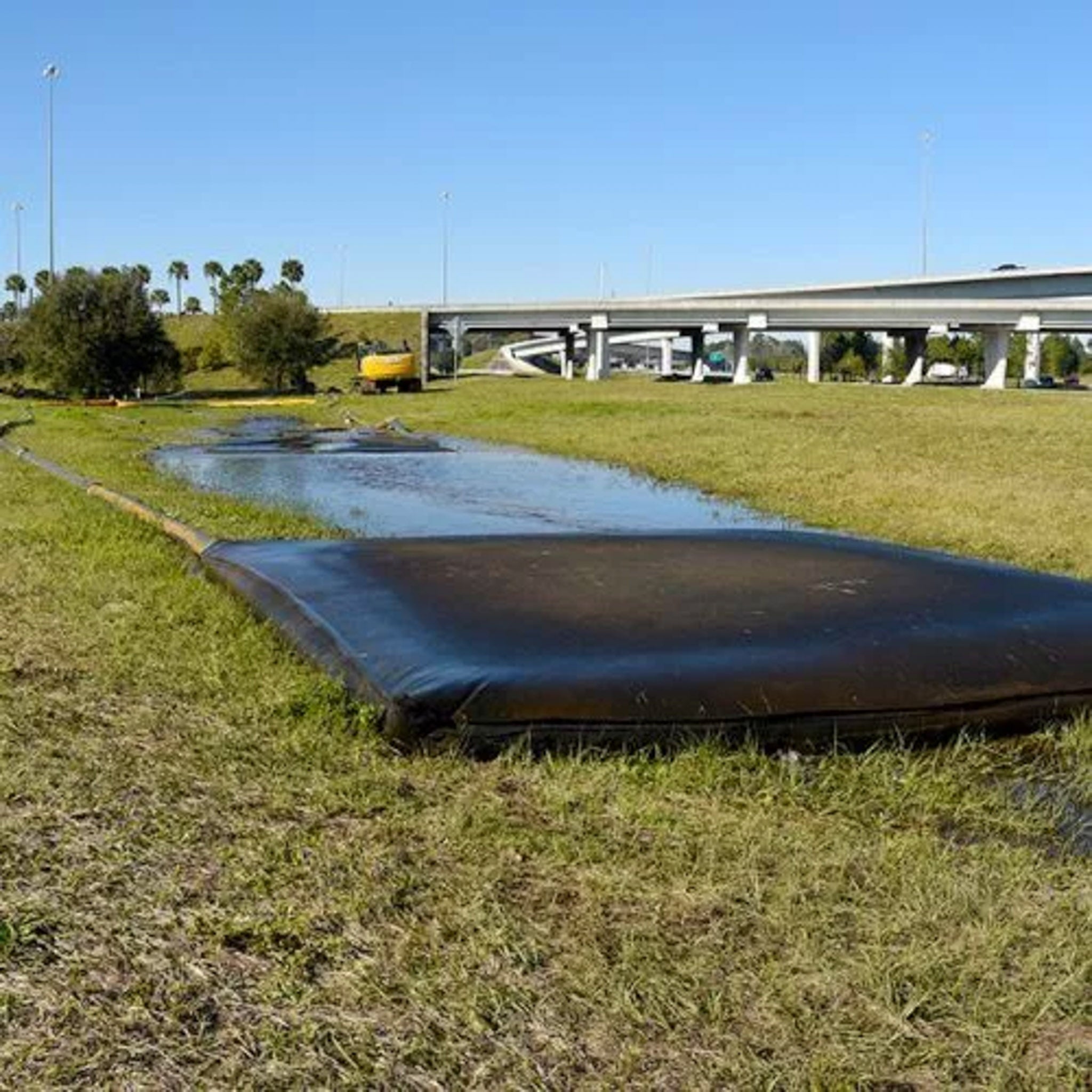

- The total flow rate through the Ultra-Dewatering Bag can be maximized by getting it off the ground. While water will flow through a dewatering bag laying flat on the ground, it will be impeded by the solid/saturated soil it is on. By placing the bag on large aggregate or on hay bales, the water will be less restricted as it flows through the bottom layer of geotextile fabric.
- The maximum flow rate of the Ultra-Dewatering Bags, when new, is 500 gallons/min.

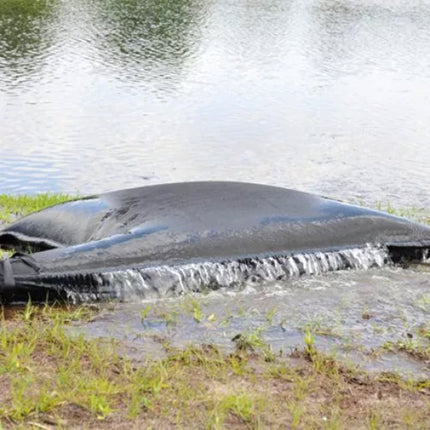

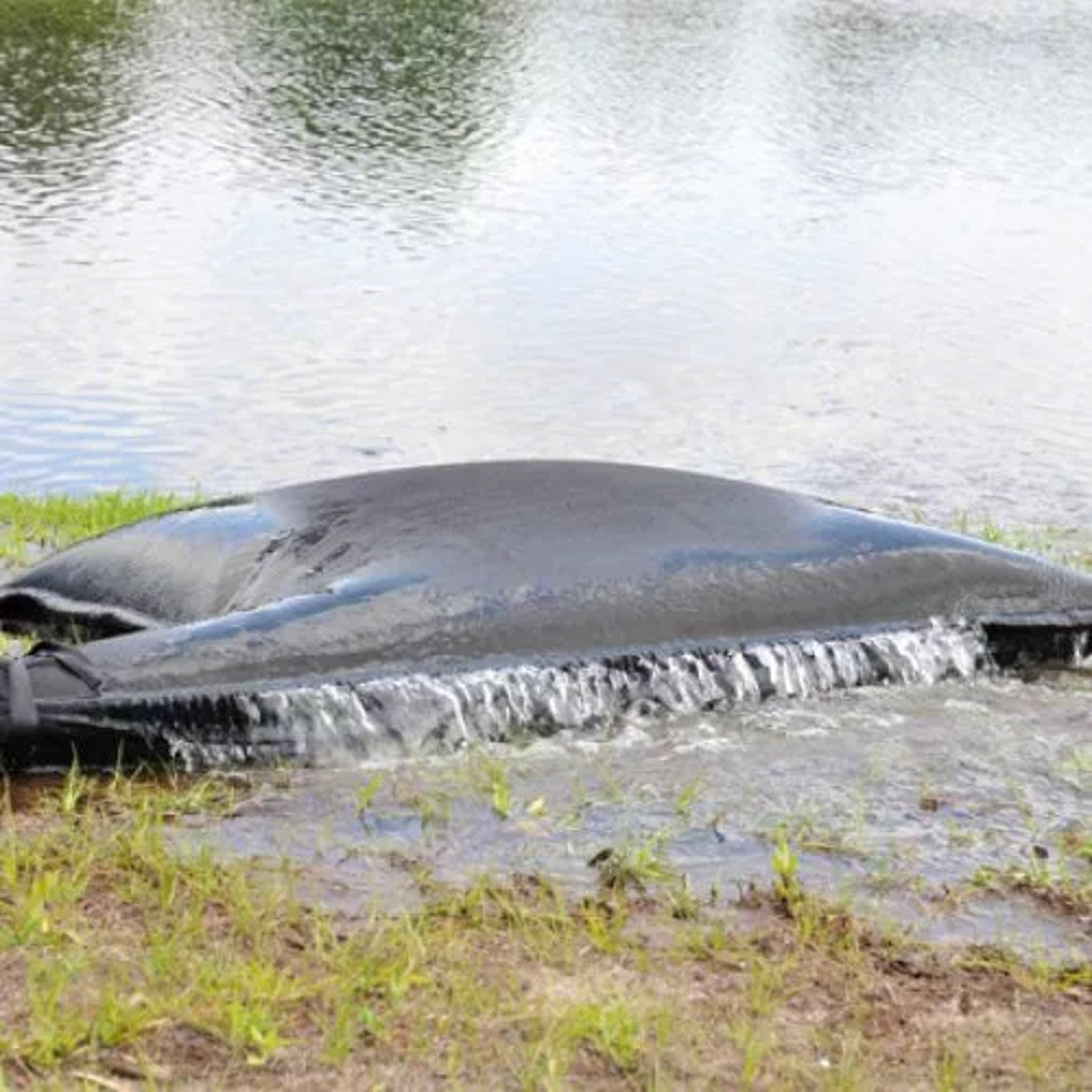

- When the Ultra-Dewatering Bag is full, it should be disposed of as directed by the site engineer and in accordance with any local regulations and requirements. Often times, it can simply be cut open and the contents dispersed.
- We can do custom sizes (and shapes).

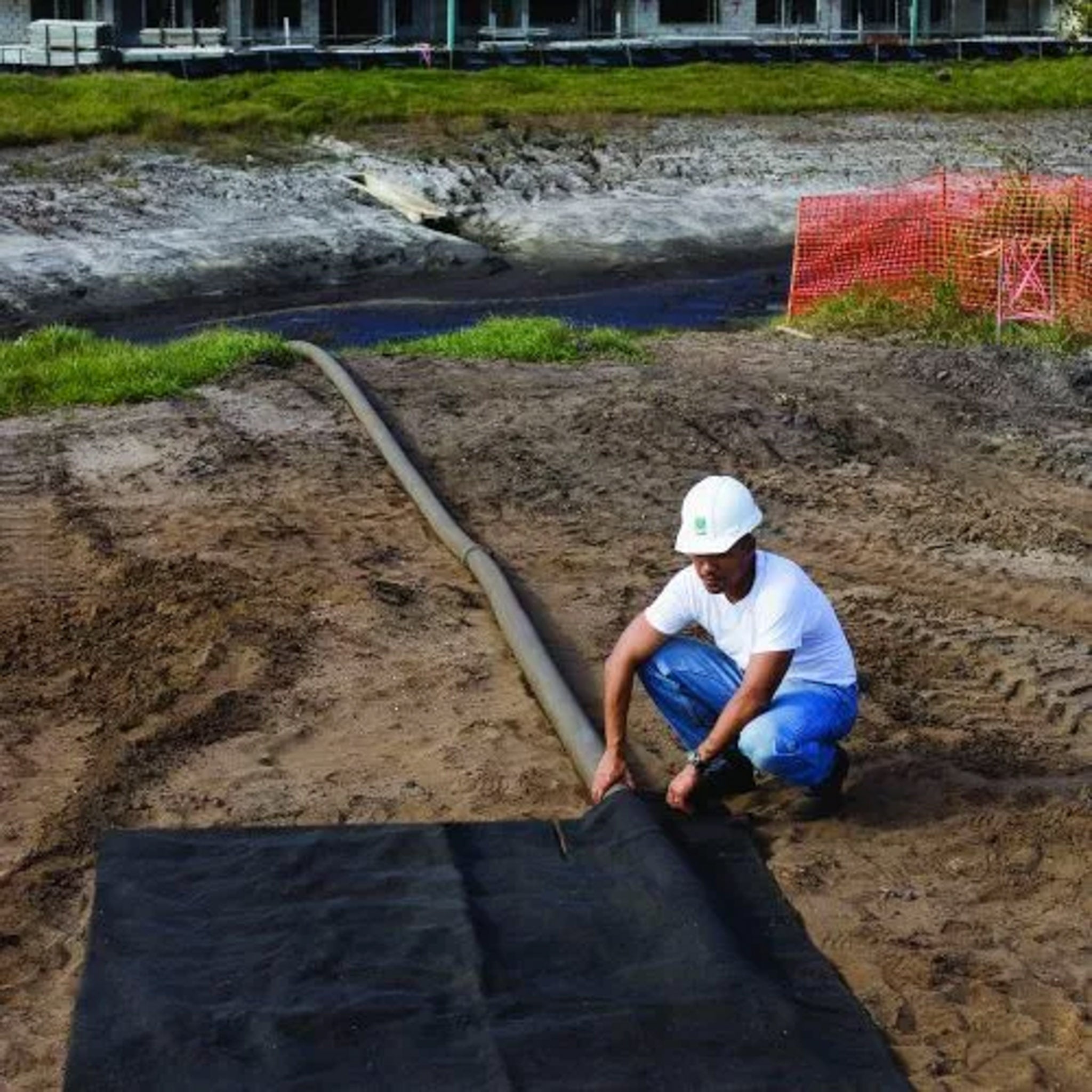

- If your flow rate is not too high, you can use the attached straps to tie off the bag to the hose. If water is being discharged at a higher flow rate, a hose clamp may be required (not included). You can also use our optional hose connector to make the connection quick and easy.
Ultra-Dewatering Bags
| Dimensions ft. (m) | Capacity cu. ft. (L) | Weight lbs. (kg) |
|---|---|---|
| 4 x 3 x 0 (1.2 x .9 x 0) | 12 (340) | 2 (.9) |
| 6 x 6 x 0 (1.8 x 1.8 x 0) | 36 (1,019) | 5 (2.3) |
| 8 x 8 x 0 (2.4 x 2.4 x 0) | 64 (1,812) | 10 (4.54) |
| 15 x 10 x 0 (4.6 x 3 x 0) | 150 (4,247) | 21 (9.5) |
| 15 x 15 x 0 (4.6 x 4.6 x 0) | 225 (6,371) | 30 (13.6) |
Options
| Model | Product Image | Weight lbs. (kg) |
|---|---|---|
| Hose Connector |  |
2.5 (1.1) |
