Ultra-Rack Sump® - Consolidated Containment

Ultra-Rack Sump®

by UltraTech
$488.00 - $527.00
$488.00
$488.00 - $527.00
$488.00

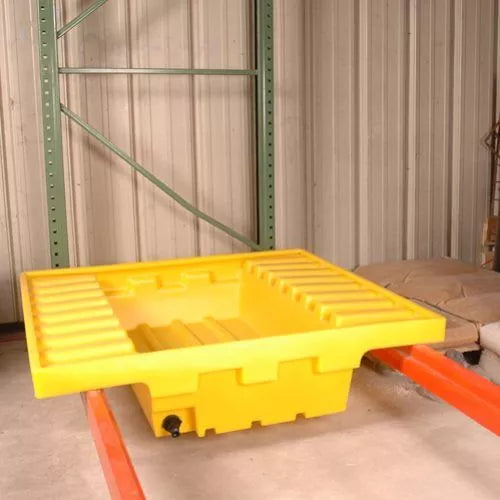

Polyethylene warehouse rack containment sump keeps dangerous and costly spills off of floors, equipment, and inventory

Storing drums on pallet racks can save a lot of valuable floor space in factories, warehouses, and other facilities. And while products like the Ultra-Rack Containment Tray work very well to capture nuisance leaks, drips, and spills, it won’t meet the EPA or SPCC spill containment regulations.

When compliance with spill containment regulations is a requirement, the Ultra-Rack Sump is the product of choice. The all-polyethylene, 66-gallon sump, is designed to fit on any standard industrial racking and works with most typical wooden pallets. An optional drain/ball valve makes removing any spillage from the sump quick and easy.

Product Highlights

  • Large, 66-gallon sump complies with SPCC and EPA spill containment regulations.

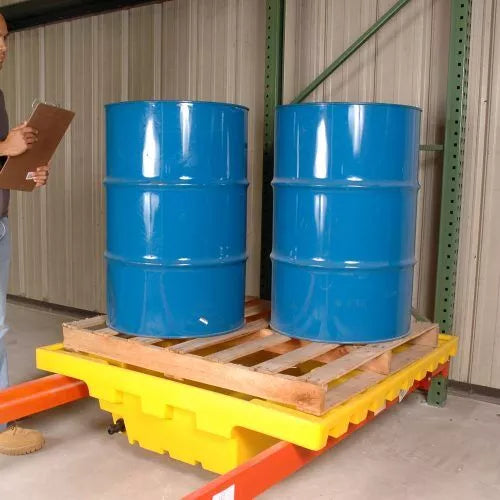

  • Unit holds up to (4) 55-gallon drums on a standard shipping pallet.

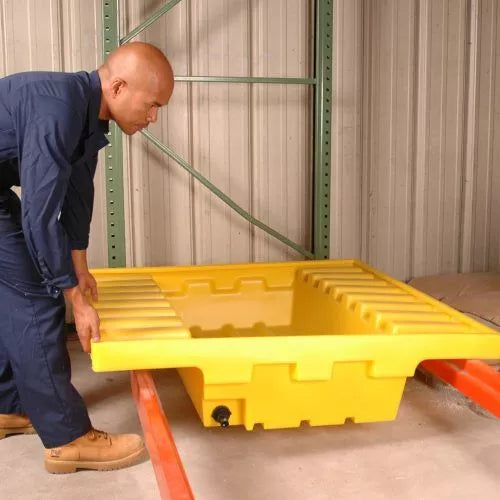

  • Low-profile design fits into warehouse racking with minimal obstruction to adjacent storage areas.
  • Allows direct forklift access to wooden pallet - sump unit stays positioned on the rack when removing pallet and drums.
  • All-polyethylene construction will not rust or corrode - provides excellent chemical resistance.
  • Yellow, translucent color allows quick, floor-level visual inspection for spills/leaks.

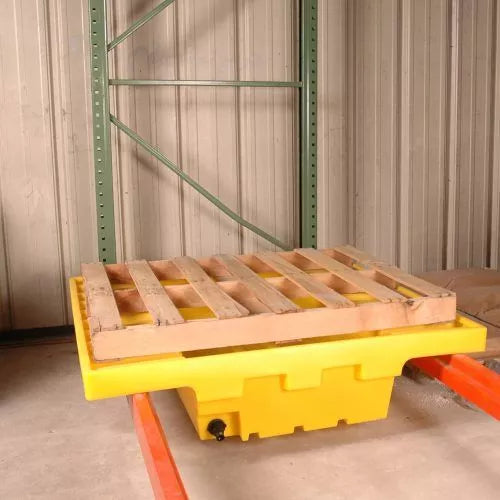

  • Designed to accommodate standard 40 x 48 or 48 x 48 wooden pallets.
  • Nestable design minimizes storage/shipping space.

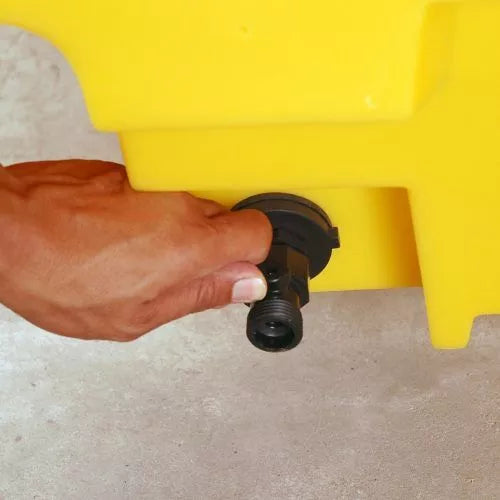

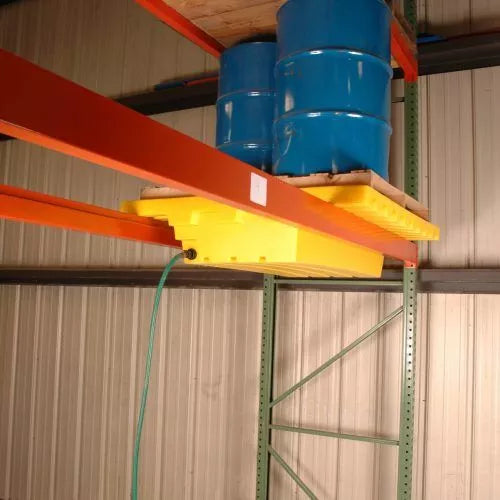

  • Optional drain/ball valve assembly allows for quick and easy draining. Standard 3/4" hose can be connected to assembly to easily drain Ultra-Rack Sumps that are not at floor level.

Ultra-Rack Sump

Part # Model Dimensions in. (mm) Containment Capacity gal. (L) Weight lbs. (kg)
2395 Without Drain 51.5 x 51.5 x 12 (1308.1 x 1308.1 x 304.8)
Inside: 49 x 49 (1,245 x 1,245)		 66 (249.8) 50 (22.7)
2396 With Drain 51.5 x 51.5 x 12 (1308.1 x 1308.1 x 304.8)
Inside: 49 x 49 (1,245 x 1,245)		 66 (249.8) 50 (22.7)
