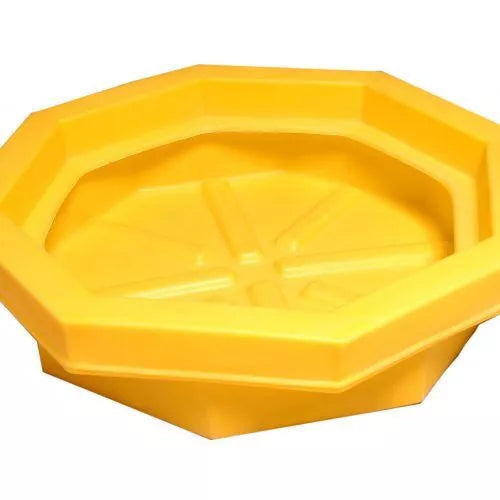

Ultra-Drum Tray®
The Ultra-Drum Tray is designed for one of two things: spill containment for smaller containers (20 gallons or smaller) or a safety measure for 55-gallon drums. The 21.1-gallon capacity is not enough to meet the EPA or SPCC spill containment regulations for 55-gallon drums, but it is perfect for capturing those nuisance drips and spill that can occur in day-to-day operations. The optional grating keeps containers elevated above any spills.
Product Highlights
- Keeps floors free of spills - designed to collect and contain drips and overflows associated with filling of 55 and 30-gallon drums.
- Optional bottom grate elevates drums 2 5/8" and out of spilled liquid.
- All-polyethylene construction will not rust or corrode.
- Optional dolly (Part #0417) available for easier transport/mobility.
Additional Information
The Ultra-Drum Tray is rotationally-molded low-density polyethylene.
The Ultra-Drum Tray can be used for different things. Essentially, it is a containment device. It can be used for secondary containment for smaller containers (bottles, jugs, smaller drums, buckets, fuel cans, etc.), or as containment of nuisance leaks, drip and small spills from larger containers (Please note that the drum tray will not comply with EPA regulations for containers larger than 20-gallons.).

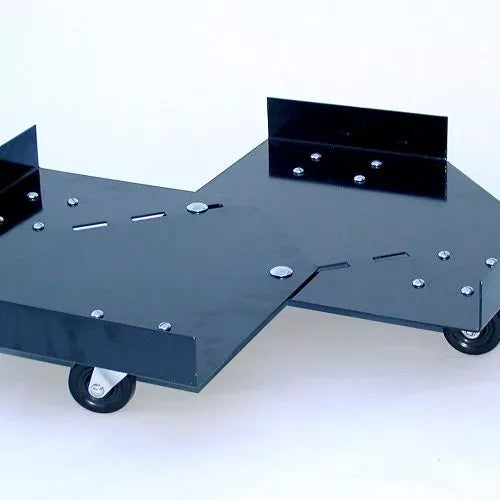

A dolly is available (Part #0417). It is a universal dolly for several products, but is adjustable and can be sized specifically for the Ultra-Drum Tray.
The Ultra-Drum Tray with grating is compliant with EPA 40 CFR 264.175 for containers that are 20-gallons or smaller.
The grating in the Ultra-Drum Tray is used to elevate containers above any spilled material.
As you can see from the photo in our gallery, a 55-gallon drum will fit on a drum tray. However, it is important to understand that the drum tray does not have enough containment to meet spill containment regulations and should only be used as a good housekeeping measure.
Ultra-Drum Trays
| Model | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|
| Tray Without Grating | 32 x 32 x 8.1 (812.8 x 812.8 x 206.5) | 22.8 (86.3) | 19 (8.6) |
| Tray With Grating | 32 x 32 x 8.1 (812.8 x 812.8 x 206.5) | 21.1 (79.9) | 26 (11.8) |
Options
| Model | Product Image | Dimensions in. (mm) | Weight Capacity UDL lbs. (kg) | Weight lbs. (kg) | Notes |
|---|---|---|---|---|---|
| Dolly |  |
26.5 x 26.5 x 5 (673.1 x 673.1 x 127) | 800 (362.9) | 35 (15.9) | For use with flat-bottom products only. |
WARNING: Part #0417 can expose you to chemicals including nickel which is known to the state of California to cause cancer. For more information, please visit www.P65Warnings.ca.gov
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
