Ultra-Spill Pallet® Economy Model
The Ultra-Spill Pallet® Economy Model was designed to help meet spill containment regulations without breaking the bank. By using recycled resin, we are able to make these spill pallets more economically and pass the savings on to our customers. Two models are available with a maximum capacity of two (2) or four (4) drums. The drain option allows any spilled contents to be easily removed.
By storing 55-gallon drums (or other size containers) of hazardous material on our pallet, you can rest assured any incidental leaks or drips, as well as any spills, will be captured in the 66-gallon sump. The all-polyethylene 2′ x 4′ grating keeps drums above any spills and is easily removed to help facilitate clean-up. Both models can easily be moved, relocated, or transported with a pallet jack or forklift. An optional ramp is available with the 4-drum model for easier loading, unloading, and drum handling.
Product Highlights
- 2-drum and 4-drum spill pallet models available.
- Applications for the all-polyethylene units include satellite waste collection and storage of virgin chemicals.
- Black color helps hide dirt and grime.
- Removable grating makes clean-up quick and easy.
- The first recycled spill pallet on the market!
Ultra-Spill Pallet® - P2 Economy Model
| Part # | Model | Dimensions in. (mm) | Grating Surface in. (mm) | Weight Capacity UDL lbs. (kg) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|
| UT-2504 | P2 Economy Model, Without Drain | 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) | 48 x 24 (1219.2 x 609.6) | 1200 (544.3) | 66 (249.8) | 63 (28.6) |
| UT-2505 | P2 Economy Model, With Drain | 53 x 29 x 16.5 (1346.2 x 736.6 x 419.1) | 48 x 24 (1219.2 x 609.6) | 1200 (544.3) | 66 (249.8) | 63 (28.6) |
Ultra-Spill Pallet® - P4 Economy Model
| Part # | Model | Dimensions in. (mm) | Grating Surface in. (mm) | Weight Capacity UDL lbs. (kg) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|---|---|
| UT-1112 | P4 Economy Model, Without Drain | 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) | 48 x 48 (1219.2 x 1219.2) | 3000 (1360.8) | 66 (249.8) | 85 (38.6) |
| UT-1113 | P4 Economy Model, With Drain | 53 x 53 x 11.8 (1346.2 x 1346.2 x 298.5) | 48 x 48 (1219.2 x 1219.2) | 3000 (1360.8) | 66 (249.8) | 85 (38.6) |
Options
| Part # | Model | Product Image | Dimensions in. (mm) | Weight Capacity UDL lbs. (kg) | Weight lbs. (kg) |
|---|---|---|---|---|---|

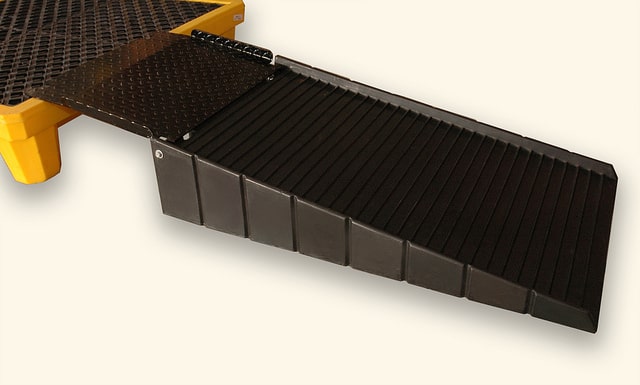

| UT-0678 | Ramp for P1 Plus, and P4 Pallets (Excluding P4 Plus) |  |
68.5 x 28.5 x 12 (1739.9 x 723.9 x 304.8) | 700 (317.5) | 73 (33.1) |
| UT-1006 | P4 Pullover Cover |  |
13 x 12 x 5 (330.2 x 304.8 x 127) | N/A | 7 (3.2) |
| UT-1016 | P2 Pullover Cover |  |
13 x 11 x 3 (330.2 x 279.4 x 76.2) | N/A | 7 (3.2) |
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
