Ultra-Containment Berm® Modular Model (Gorilla Berm)
SKU UT-8740
por UltraTech
Precio original
$177.00
-
Precio original
$21,841.00
Precio original
$3,697.00
$177.00
-
$21,841.00
Precio actual
$3,697.00
Versatile spill containment that can be reused and easily modified

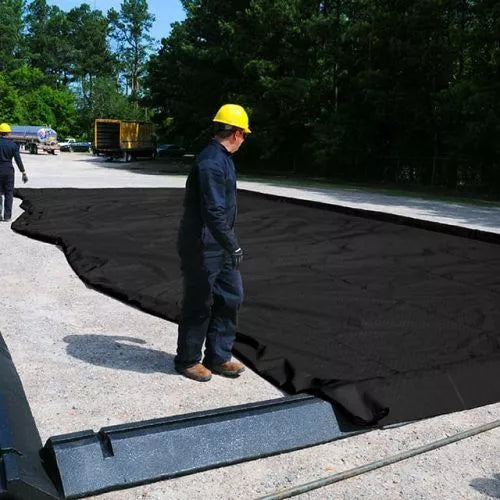

The Ultra-Containment Berm Modular Model, also known as the Gorilla Berm, can change its dimensions. By using 6-foot long coated, foam blocks for its wall structure, the Gorilla Berm can very quickly and easily be resized to other shapes and sizes to meet other requirements.

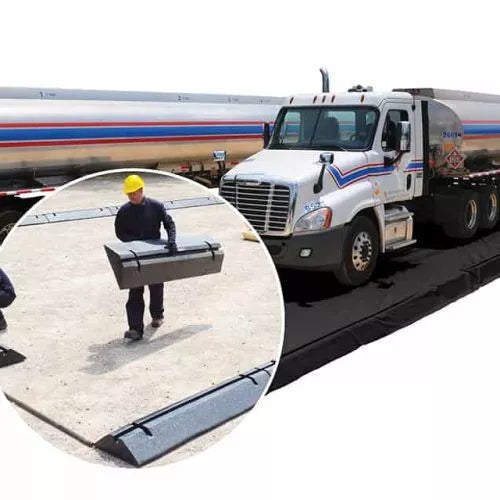

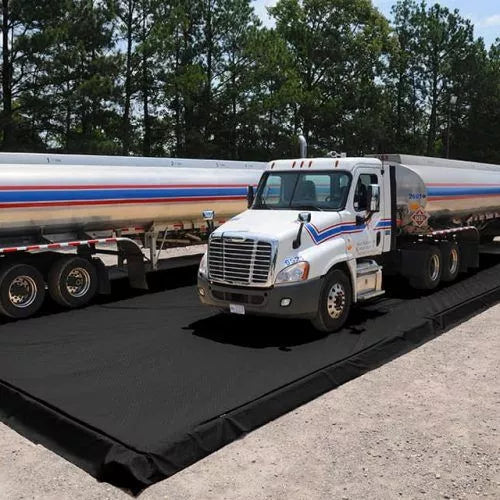

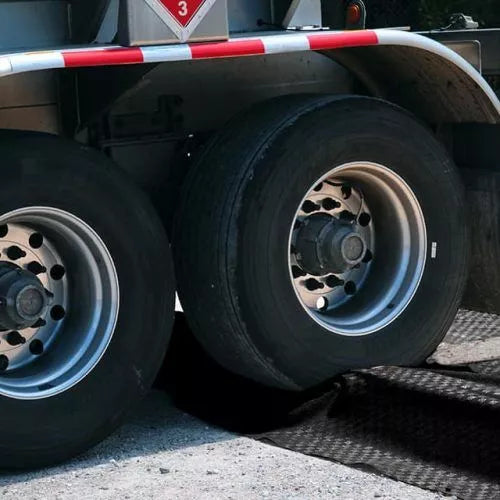

The foam blocks also allow the modular model containment berm to be driven in and out of without any manual operation of the walls. The heavy-duty foam compresses to allow trucks and other vehicles to drive into the unit and quickly returns to its normal state when the weight is removed.
Product Highlights

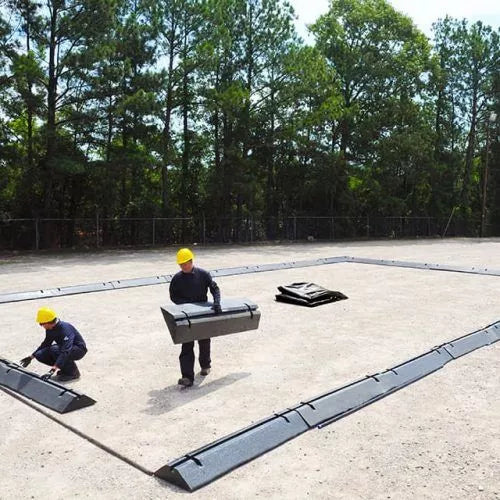

- Modular construction allows containment areas of any size to be configured.

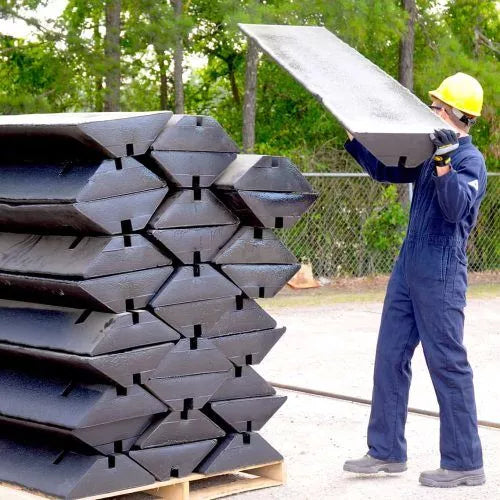

- Polymer-coated foam support blocks (6’ lengths) provide structure to sidewalls - can be driven over repeatedly without damage.
- Standard material is a 22oz., anti-skid, coated vinyl fabric.
- Triangular-shaped, polymer-coated foam support blocks (72”L x 16”W x 6”H) are used with rebar (not included) to provide sidewall structure.

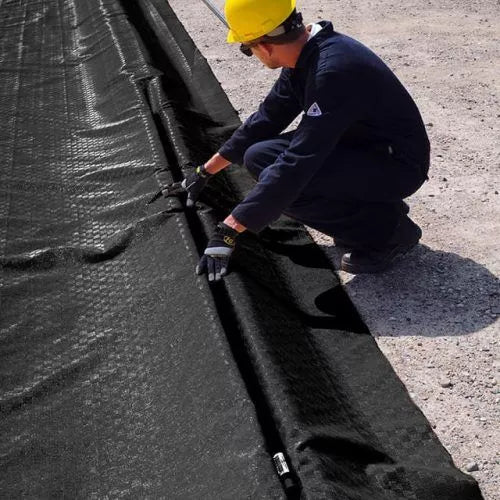

- Molded-in slots in the top of foam blocks hold rebar - secures material in place.
- True drive-in/drive-out capability. No manual set-up or take down of sidewalls required.
Ultra-Containment Berms - Modular Models (Gorilla Berms)
| Part # | Dimensions ft. (m) | Quantity | Containment Capacity gal. (L) | Weight lbs. (kg) | Color |
|---|---|---|---|---|---|
| UT-8740 | 13 x 7 x .5 (4 x 2.1 x .2) | 6 Walls, 4 Corners | 366 (1,385) | 190 (86.2) | Black |
| UT-8741 | 13 x 13 x .5 (4 x 4 x .2) | 8 Walls, 4 Corners | 665 (2,517) | 246 (111.6) | Black |
| UT-8742 | 25 x 13 x .5 (7.6 x 4 x .2) | 12 Walls, 4 Corners | 1,263 (4,781) | 359 (162.8) | Black |
| UT-8743 | 31 x 13 x .5 (9.4 x 4 x .2) | 14 Walls, 4 Corners | 1,563 (5,917) | 415 (188.2) | Black |
| UT-8744 | 43 x 13 x .5 (13.1 x 4 x .2) | 18 Walls, 4 Corners | 2,161 (8,180) | 523 (237.2) | Black |
| UT-8745 | 55 x 13 x .5 (16.8 x 4 x .2) | 22 Walls, 4 Corners | 2,759 (10,444) | 640 (290.3) | Black |
| UT-8746 | 61 x 13 x .5 (18.6 x 4 x .2) | 24 Walls, 4 Corners | 3,059 (11,580) | 695 (315.2) | Black |
| UT-8747 | 55 x 25 x .5 (16.8 x 7.6 x .2) | 26 Walls, 4 Corners | 5,243 (19,847) | 838 (380.1) | Black |
| UT-8748 | 55 x 31 x .5 (16.8 x 9.4 x .2) | 28 Walls, 4 Corners | 6,485 (24,548) | 935 (424.1) | Black |
| UT-8749 | 55 x 55 x .5 (16.8 x 16.8 x .2) | 36 Walls, 4 Corners | 11,452 (43,351) | 1028 (466.3) | Black |
Options
| Part # | Model | Dimensions in. (mm) | Weight lbs. (kg) |
|---|---|---|---|
| UT-8730 | Modular Model Side Wall | 72 x 18 x 6 (1828.8 x 457.2 x 152.4) | 19 (8.6) |

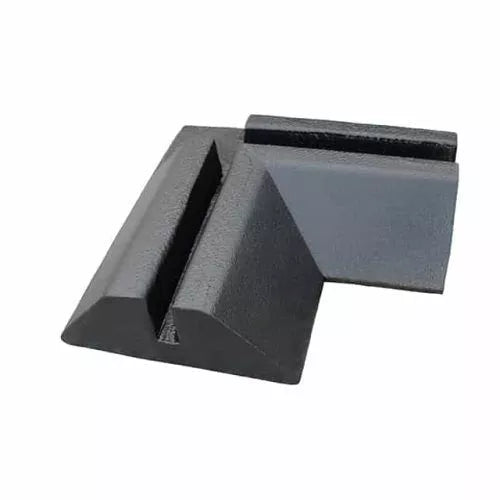

| UT-8731 | Modular Model Corner Wall | 24 x 24 x 6 (609.6 x 609.6 x 152.4) | 9 (4.1) |
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
