Ultra-Containment Berm® Stake Wall Model
Portable secondary containment berm for drums, frac tanks, equipment and vehicles

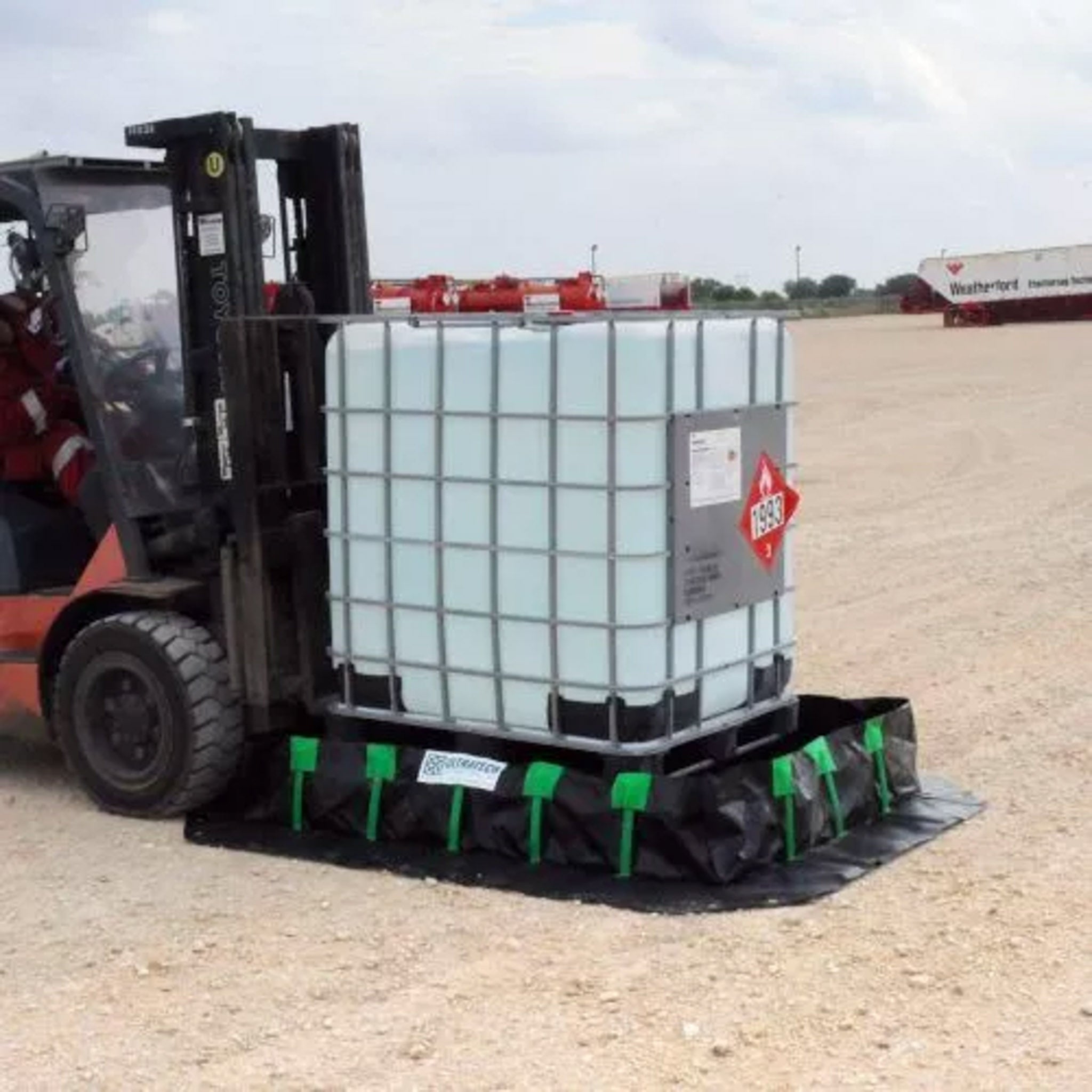

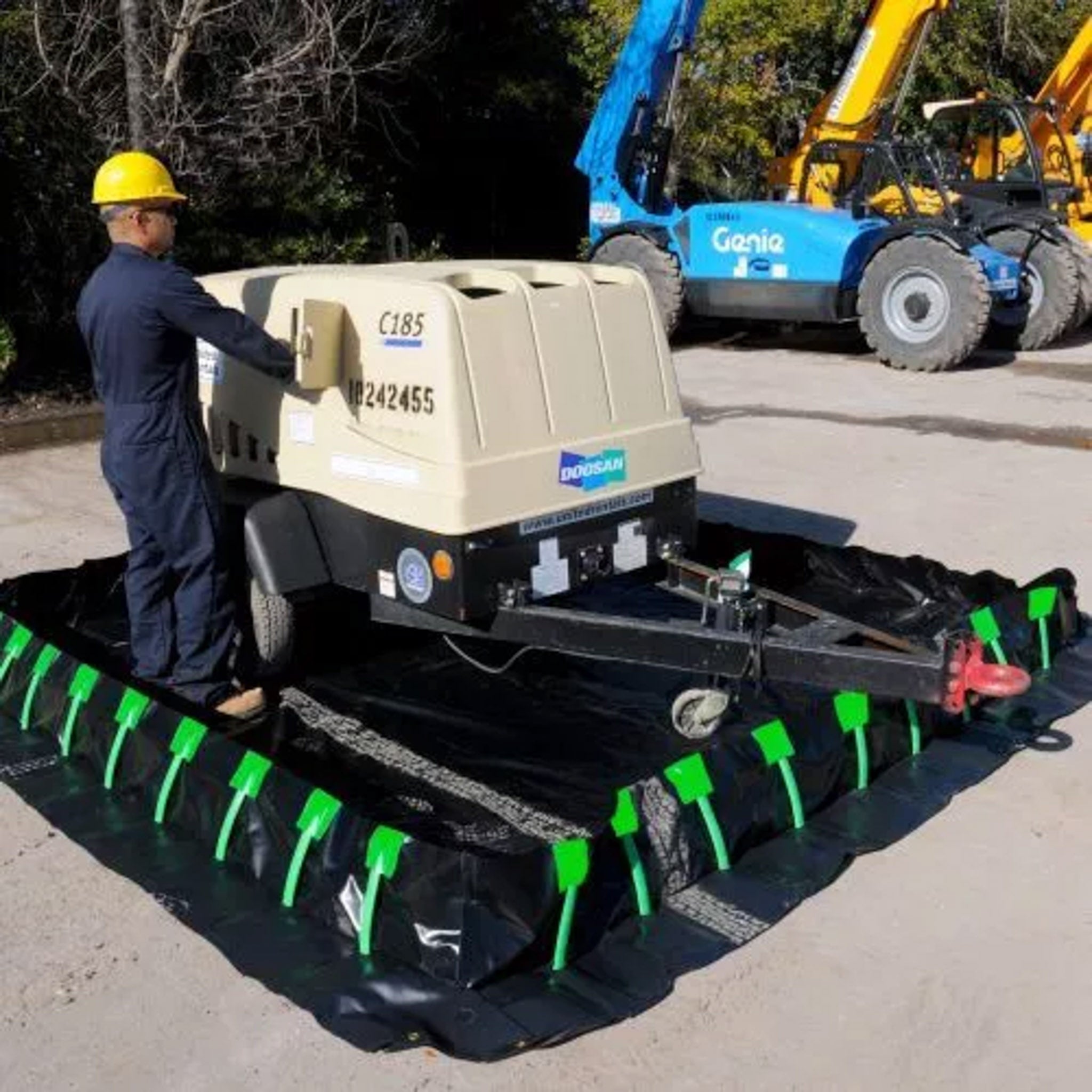

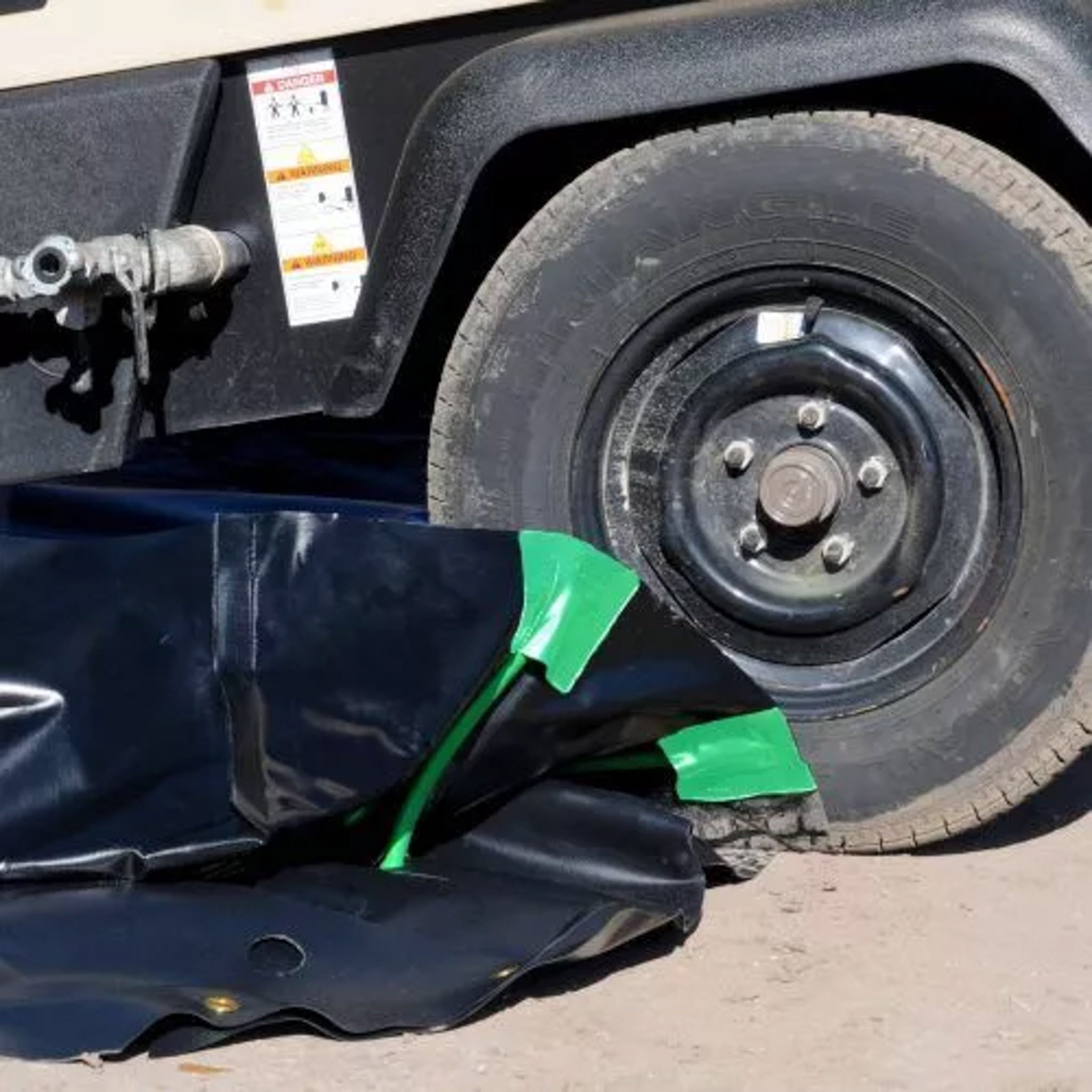

The Ultra-Containment Berm Stake Wall Model is a portable berm that helps capture leaks, drips, and spills to prevent them from contaminating and polluting the environment. The stake wall model’s design features flexible polyurethane stakes that allow the sidewalls to spring into place automatically – even after being bent in either direction. This makes it perfect for spill sites or containment areas because it allows drums and trucks to roll over the walls without breaking their upright structure.
Product Highlights
- Easily folds for transport.
- No set-up required - unfold and the sidewalls automatically spring into their vertical position.
- Custom sizes available.

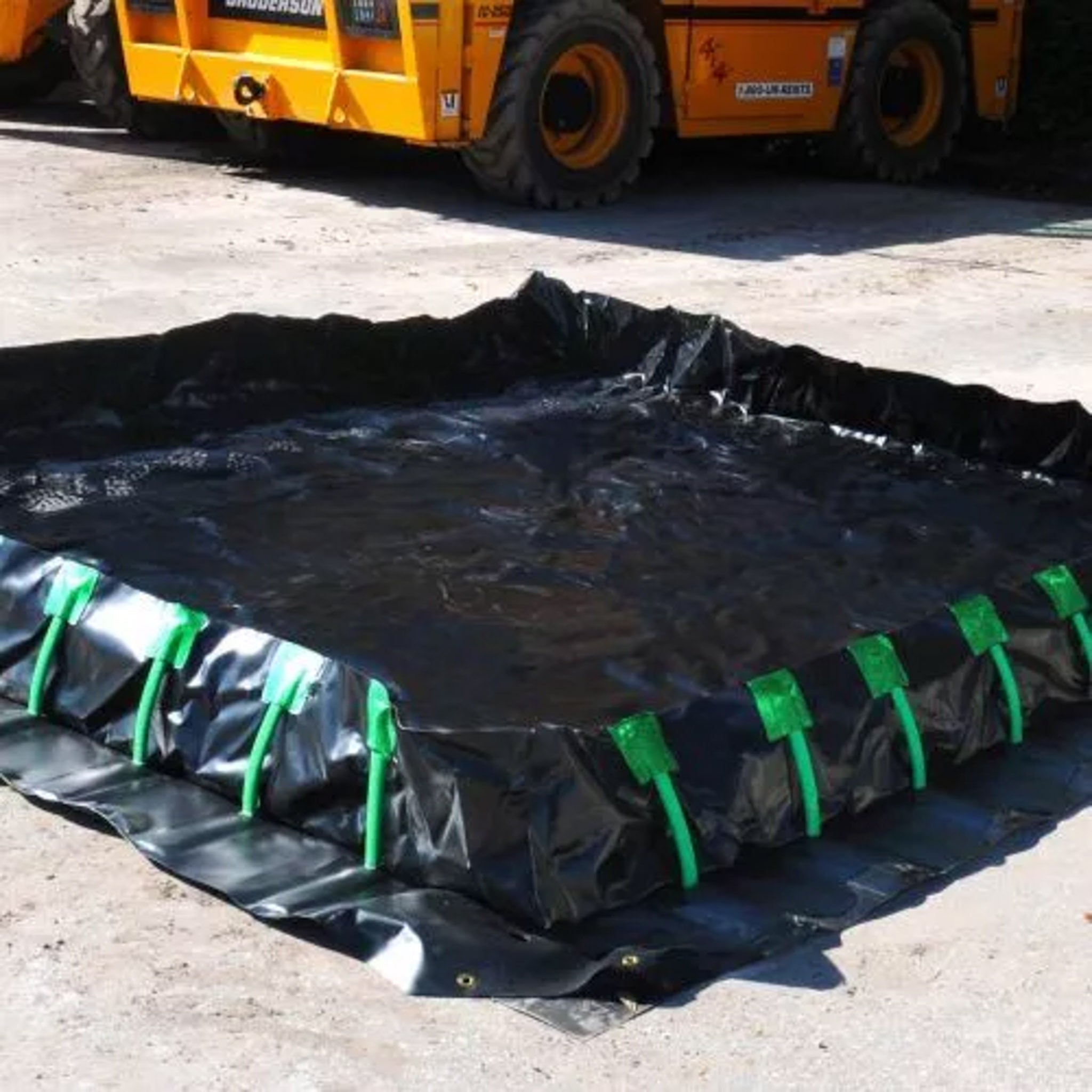

- Vertical sidewall supports located every 12". Each Support features a built-in "living hinge" at its base, which allows sidewalls to collapse in either direction.

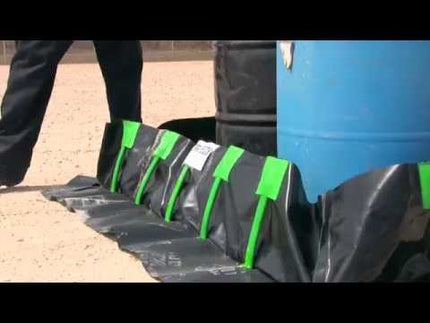

- Collapsed sidewalls spring back automatically.
Ultra-Containment Berm - Stake Wall Models
| Dimensions ft. (m) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|
| 6 x 4 x 1 (1.8 x 1.2 x .3) | 179 (677.6) | 37 (16.8) |
| 6 x 6 x 1 (1.8 x 1.8 x .3) | 269 (1018.3) | 46 (20.9) |
| 10 x 10 x 1 (3 x 3 x .3) | 748 (2831.5) | 87 (39.5) |
| 20 x 10 x 1 (6.1 x 3 x .3) | 1496 (5663) | 150 (68) |
| 30 x 10 x 1 (9.1 x 3 x .3) | 2244 (8494.5) | 208 (94.3) |
| 40 x 10 x 1 (12.2 x 3 x .3) | 2992 (11326) | 266 (120.7) |
| 50 x 10 x 1 (15.2 x 3 x .3) | 3740 (14157.4) | 325 (147.4) |
| 12 x 12 x 1 (3.7 x 3.7 x .3) | 1077 (4076.9) | 113 (51.3) |
| 20 x 12 x 1 (6.1 x 3.7 x .3) | 1795 (6794.8) | 162 (73.5) |
| 30 x 12 x 1 (9.1 x 3.7 x .3) | 2692 (10190.3) | 223 (101.2) |
| 40 x 12 x 1 (12.2 x 3.7 x .3) | 3590 (13589.6) | 284 (128.8) |
| 50 x 12 x 1 (15.2 x 3.7 x .3) | 4488 (16988.9) | 345 (156.5) |
| 60 x 12 x 1 (18.3 x 3.7 x .3) | 5385 (20384.4) | 406 (184.2) |
| 15 x 15 x 1 (4.6 x 4.6 x .3) | 1683 (6370.8) | 151 (68.5) |
| 20 x 15 x 1 (6.1 x 4.6 x .3) | 2244 (8494.5) | 184 (83.5) |
| 30 x 15 x 1 (9.1 x 4.6 x .3) | 3366 (12741.7) | 250 (113.4) |
| 40 x 15 x 1 (12.2 x 4.6 x .3) | 4488 (16988.9) | 317 (143.8) |
| 50 x 15 x 1 (15.2 x 4.6 x .3) | 5610 (21236.2) | 363 (164.7) |
| 66 x 15 x 1 (20.1 x 4.6 x .3) | 7405 (28031) | 464 (210.5) |
Additional Information
- Operating temperature: PVC: Max 150°F, Min: -20°F; Copolymer-2000: Max 160°F, Min: -25°F
- Weight of materials: Copolymer 2000 – 25 oz. / sq. yard; PVC – 22 oz. / sq. yard
- If the chemical is not listed in the guide, chances are that chemical has not been tested with the material. If we cannot get a definitive answer from our engineering staff, we can send a testing kit to you for a 30-day immersion test.
- We can make containment berms in custom sizes in virtually any length and width.
- Custom heights are available for most of the Ultra-Containment Berms. Please contact us for more information.
Helps Comply with These Rules & Regulations
- EPA Container Storage Regulation 40 CFR 264.175
- Spill Prevention, Control and Countermeasure Act (SPCC) 40 CFR 112
WARNING: Part #8208-#8212 and #8220-#8233 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
Lead Times
Most products ship within 1-3 business days depending on availability. If you need a product sooner than this, please call 409-429-4834 to discuss availability and shipping options.
