Ultra-Self Bailer®
Passively filter hydrocarbons from stormwater in outdoor containment products
Outdoor spill containment presents a challenge that is not seen indoors…rain. Unless outdoor spill containment is covered / protected from the elements, it is susceptible to rainfall. If a containment unit’s sump gets filled up with rainwater, it loses its capacity to contain spills. In other words, for every gallon of rain in the sump, there is one less gallon of chemical / fuel / hazmat that can be contained.

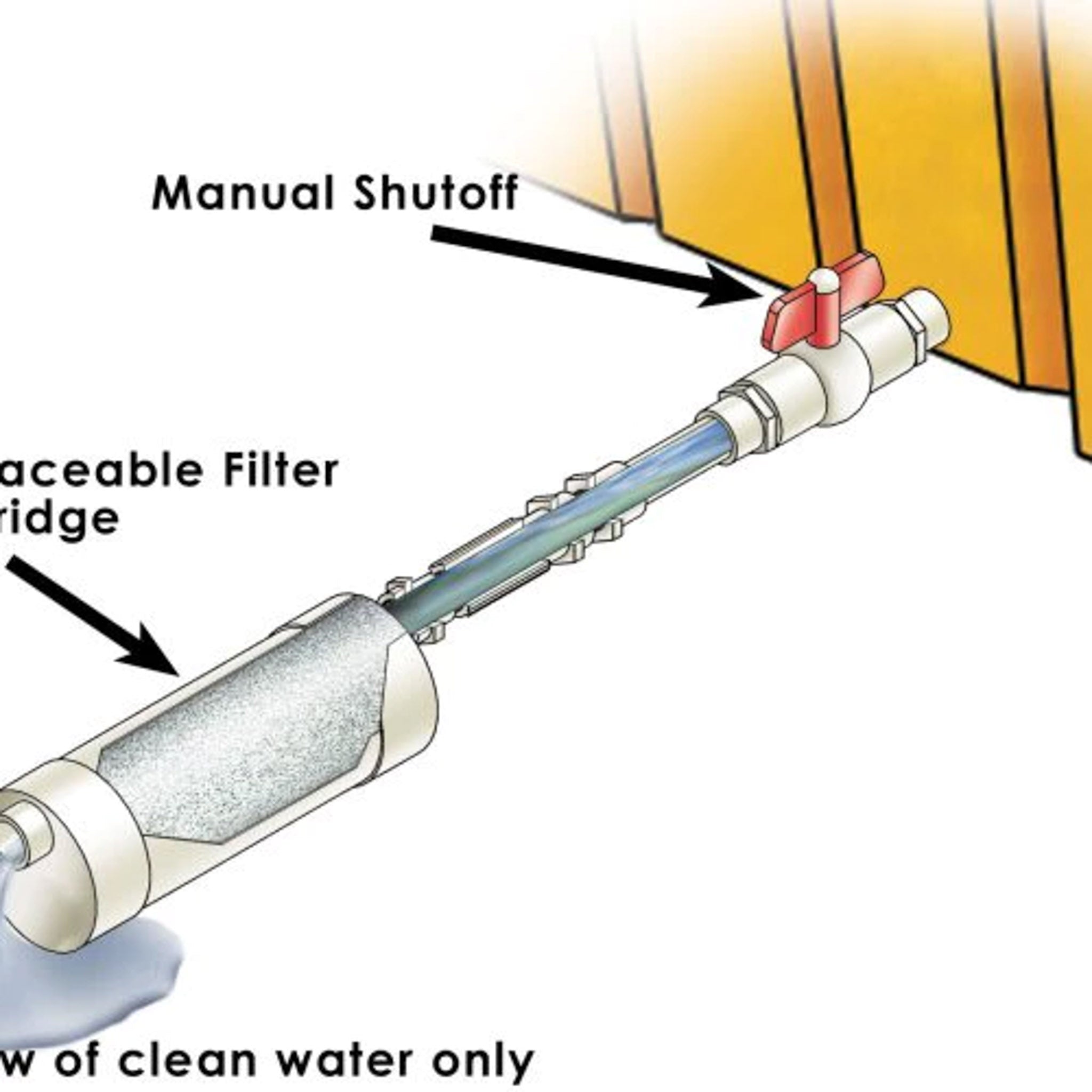

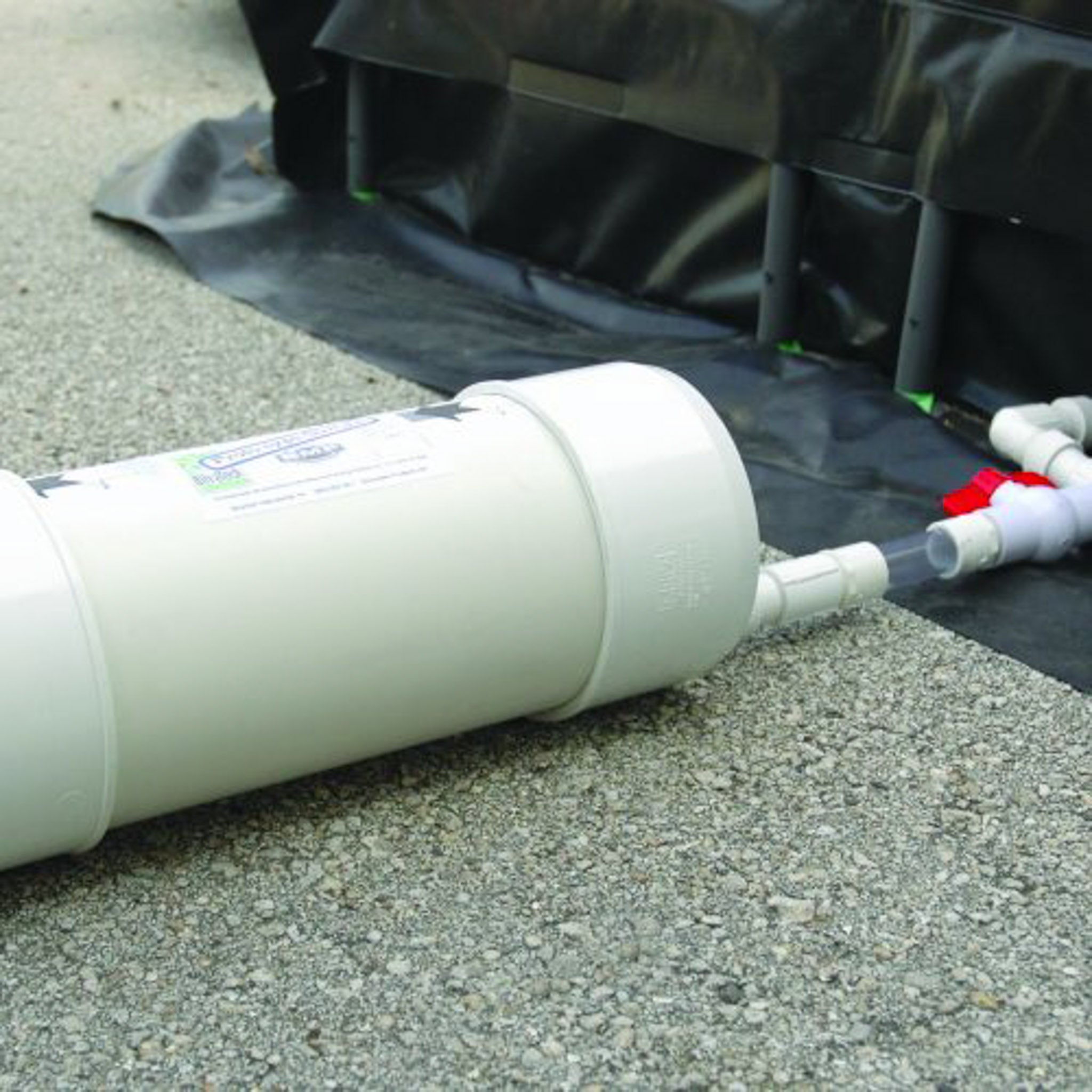

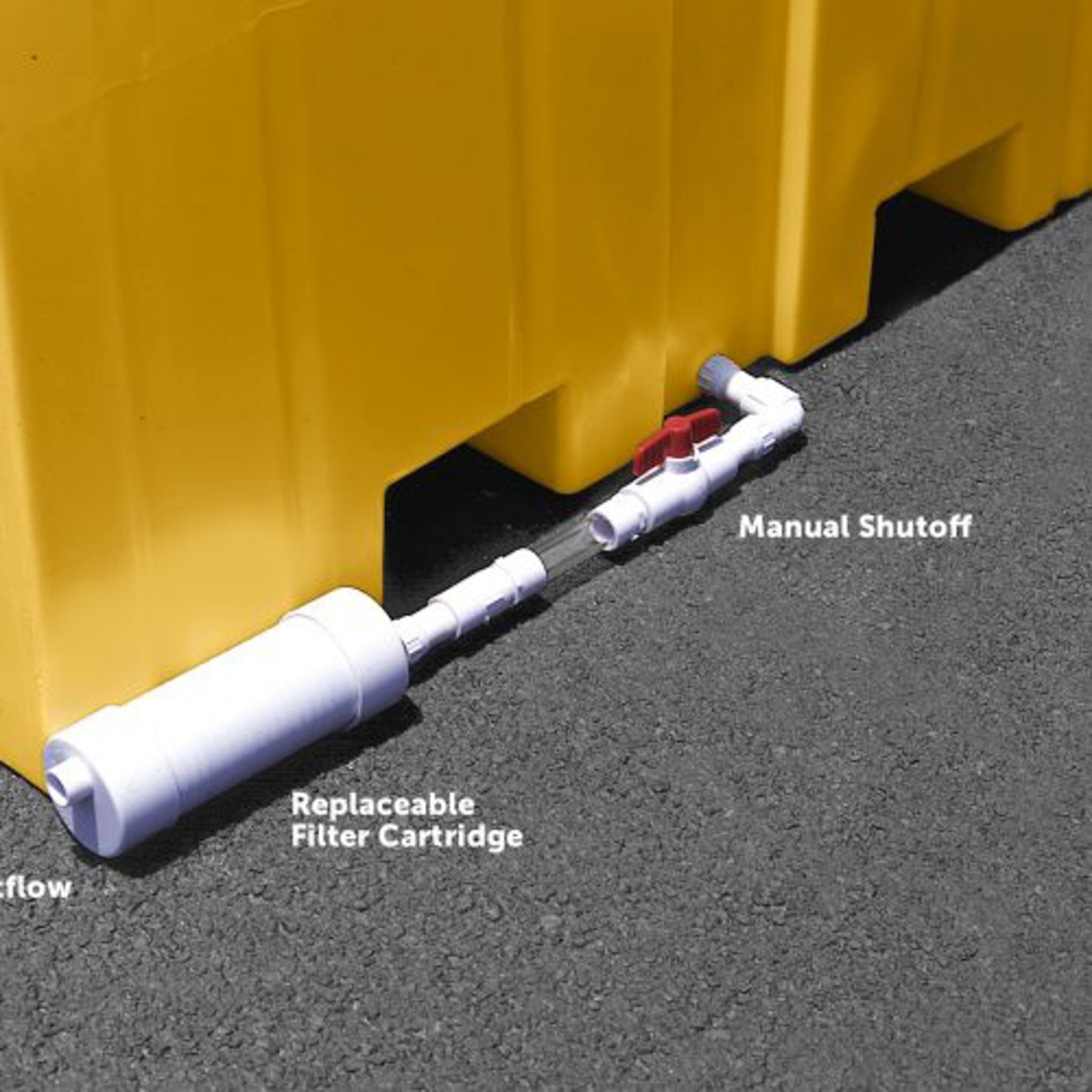

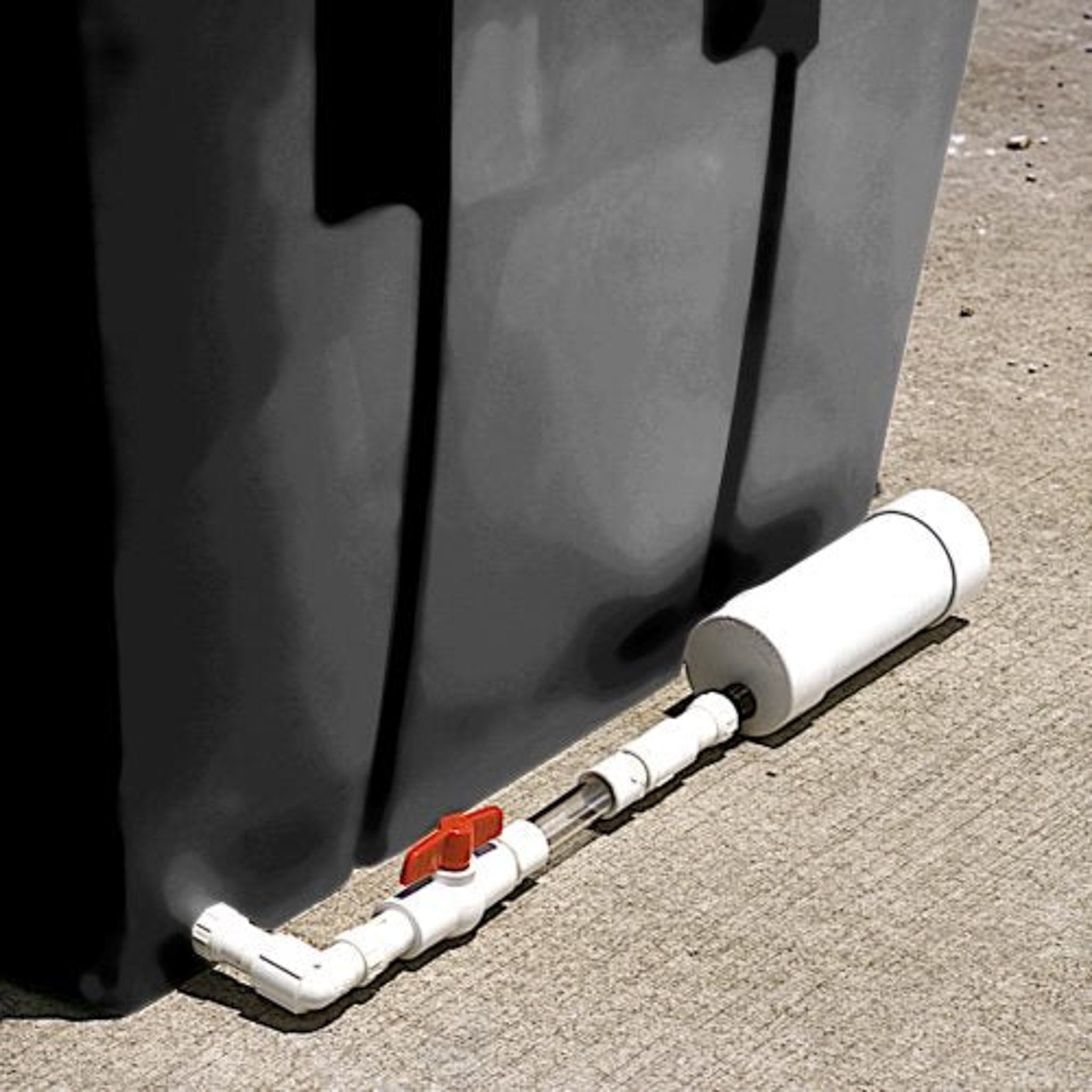

The Ultra-Self Bailer is designed to attach to any spill containment unit, typically by a bulkhead fitting. Rainwater drains through the bulkhead fitting and any residual oil, gas or other hydrocarbons is removed by the filter media inside of the unit, allowing only clean water to exit. In the event of a spill, the media swells, completely sealing off the self bailer preventing any liquid from escaping.
Product Highlights
- The best protection for non-monitored containment sites.
- Helps eliminate problems associated with the collection of rainwater in outdoor containment products.

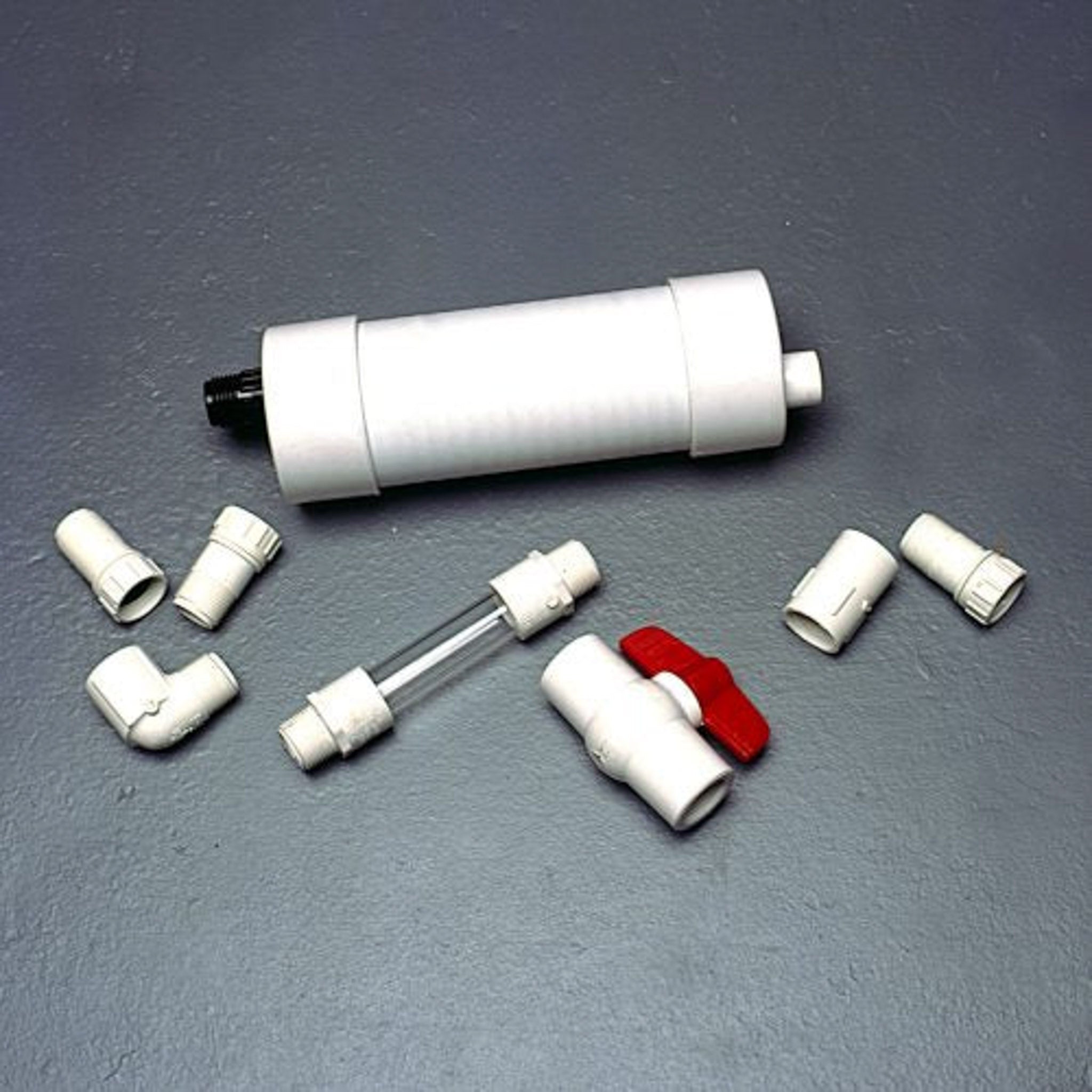

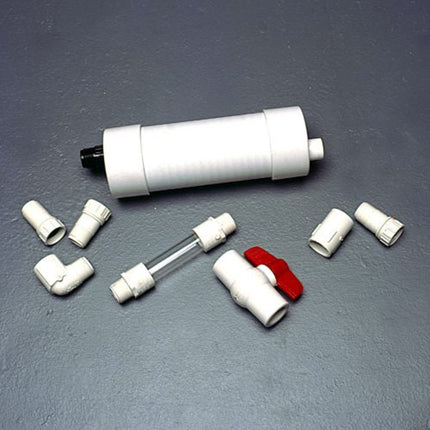

- Simple installation - can be connected to almost any UltraTech containment product.
- Hydrocarbon "sheens" and modest spills are captured - clean stormwater drains through the outflow port.
- Larger or concentrated spills activate "auto shut-off" mechanism.

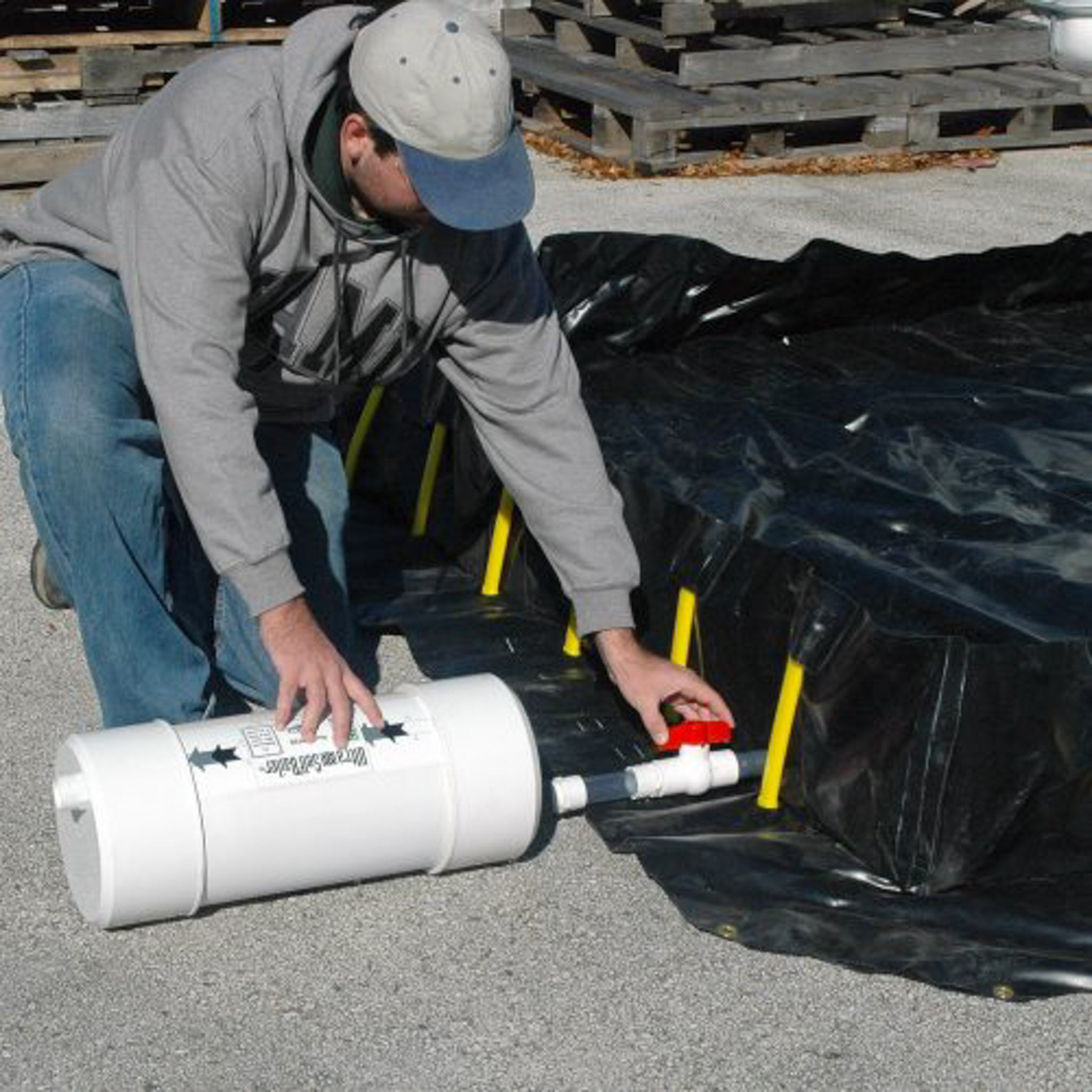

- Manual shut-off valve can be used to secure all draining operations, change out the filter cartridge.
- Filters are quickly and easily replaced.
- PVC construction - will not rust or corrode.

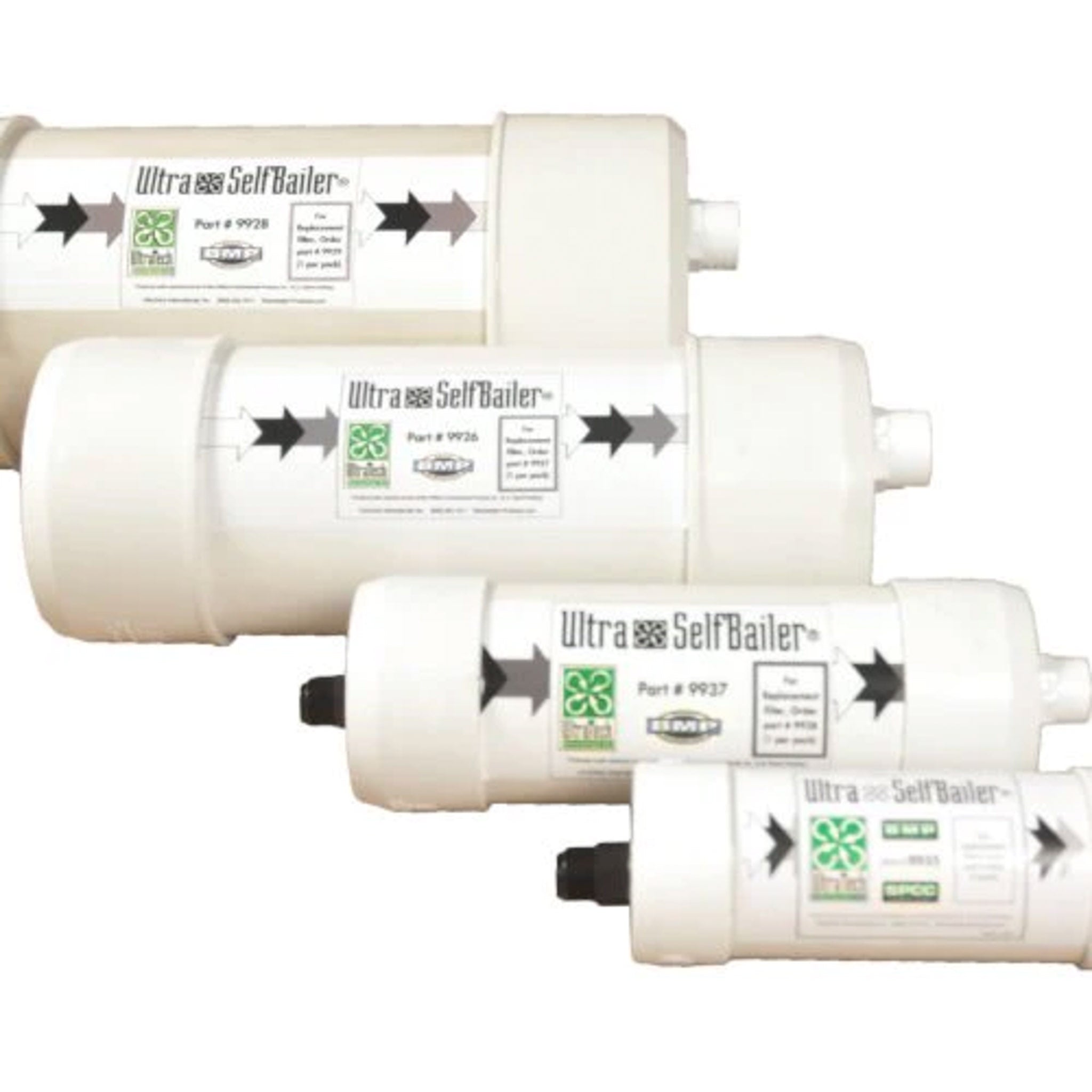

Ultra-Self Bailer
| Model | Dimensions in. (mm) | Weight lbs. (kg) | Notes |
|---|---|---|---|
| Standard | 28 x 3.5 x 3.5 (711.2 x 88.9 x 88.9) | 2 (.9) | 6-28 oz. Capacity | Cut-off Loss:* 7-10 oz. | Flow Rate: 7.5 (29) gal (L) per hour** |
| Large | 36 x 4.5 x 4.5 (914.4 x 114.3 x 114.3) | 6 (2.7) | 21-28 oz. Capacity | Cut-off Loss:* 26-32 oz. | Flow Rate: 22 (84) gal (L) per hour** |
| XL | 39 x 6.5 x 6.5 (990.6 x 165.1 x 165.1) | 11 (5) | 140-156 oz. Capacity | Cut-off Loss:* 150-165 oz. | Flow Rate: 42 (159) gal (L) per hour** |
| XXL | 43 x 9 x 9 (1092.2 x 228.6 x 228.6) | 16 (7.3) | 200-226 oz. Capacity | Cut-off Loss:* 215-228 oz. | Flow Rate: 55 (209) gal (L) per hour** |
Replacement Filters
| Model | Quantity |
|---|---|
| Ultra-Self Bailer Replacement Filters - Standard | 2 Filters |
| Ultra-Self Bailer Replacement Filters - Large | 1 Filter |
| Ultra-Self Bailer Replacement Filters - XL | 1 Filter |
| Ultra-Self Bailer Replacement Filters - XXL | 1 Filter |
* Cut-off loss is the approximate amount of hydrocarbons that may pass through the self-bailer prior to complete shut-off in the event of a spill.
** At 2” WC (Head Pressure)
WARNING: Part #9926-9929 and Part #9935-#9938 can expose you to chemicals including titanium dioxide which is known to the State of California to cause cancer. For more information, please visit www.P65Warnings.ca.gov
