Ultra-Track Berm®
The Ultra-Track Berm® offers superior track-side protection with its lightweight and portable design. The dual sump design, made of durable 40 oz. PVC material, allows for drainage via two stainless steel camlock fittings, while the walls are constructed using closed-cell foam for strength and durability in harsh railroad conditions.
Portable containment unit captures railcar leaks and spills

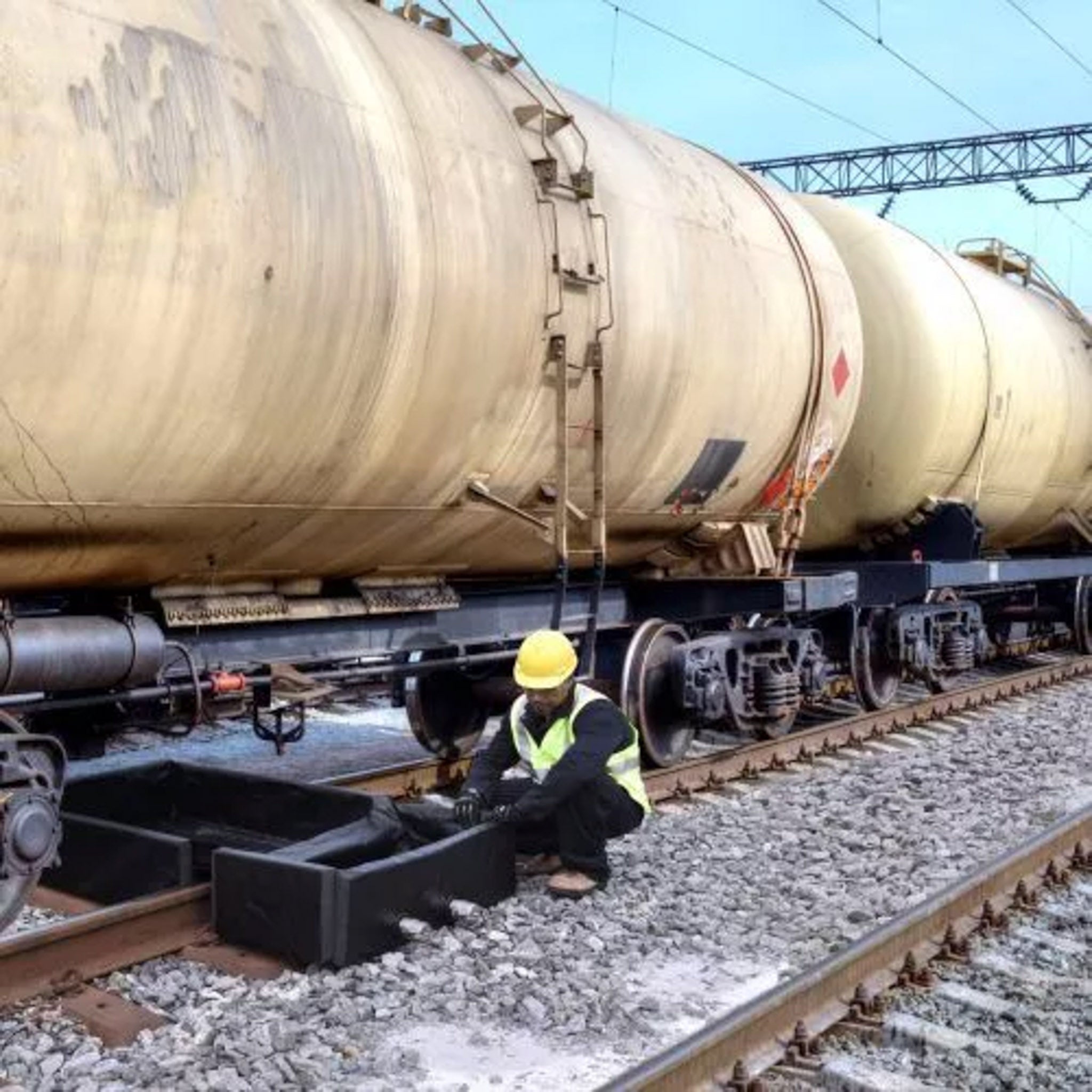

Leaky locomotives and tanker cars can wreak environmental havoc on a railroad site. For loading areas, maintenance locations and other sections where leaks and spills are frequent, a more permanent spill containment system like the Ultra-Track Pans is an excellent solution.

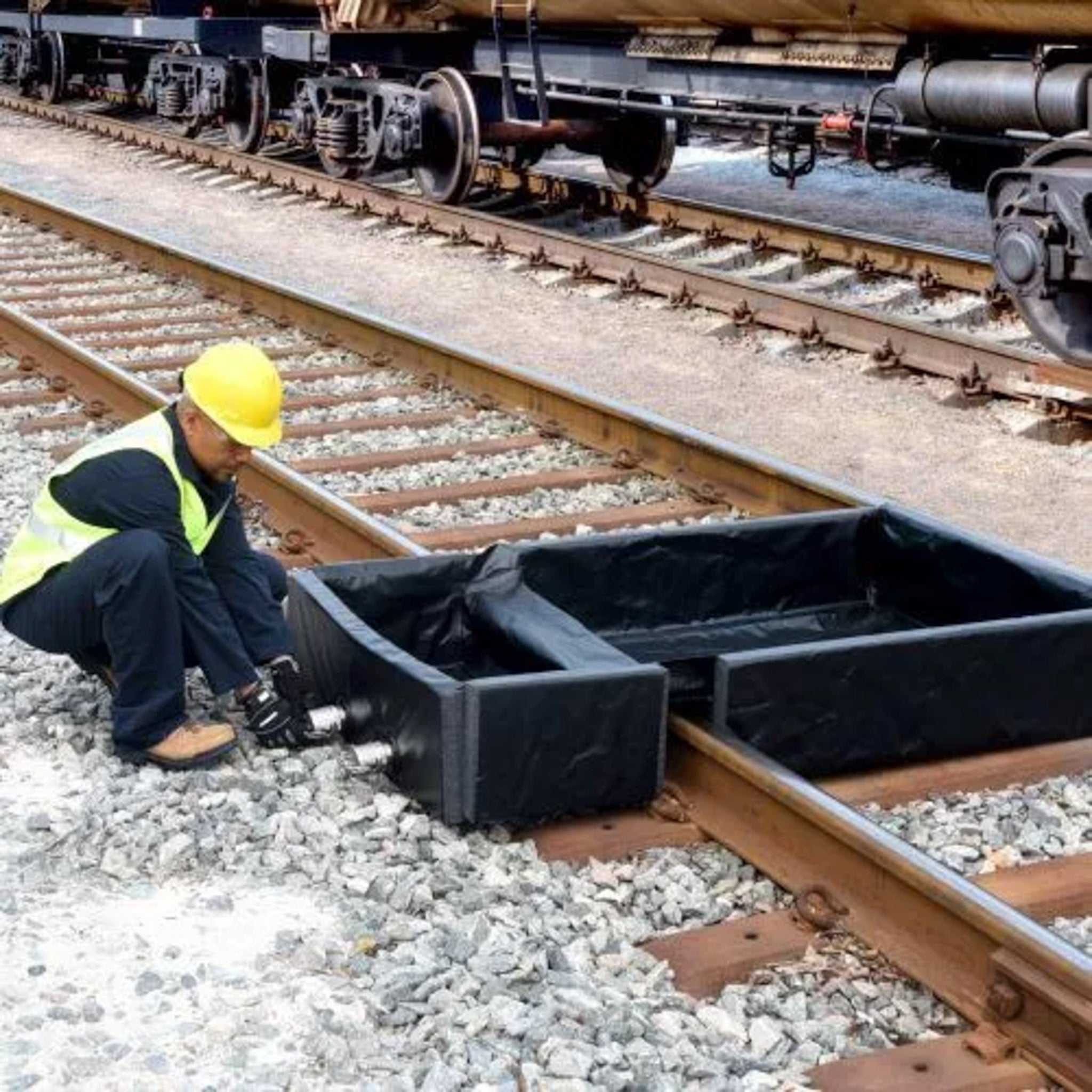

But for a portable spill containment / spill response solution, the Ultra-Track Berm® may be just the right answer. The track berm is portable enough to be quickly and effectively moved by one person to a leak or spill and can capture up to 144 gallons.
If a larger spill occurs or greater capacity is needed, drain hoses (not included) can be connected to the camlock fittings so the spilled material is directed to a waste collection area or larger container.
Product Highlights

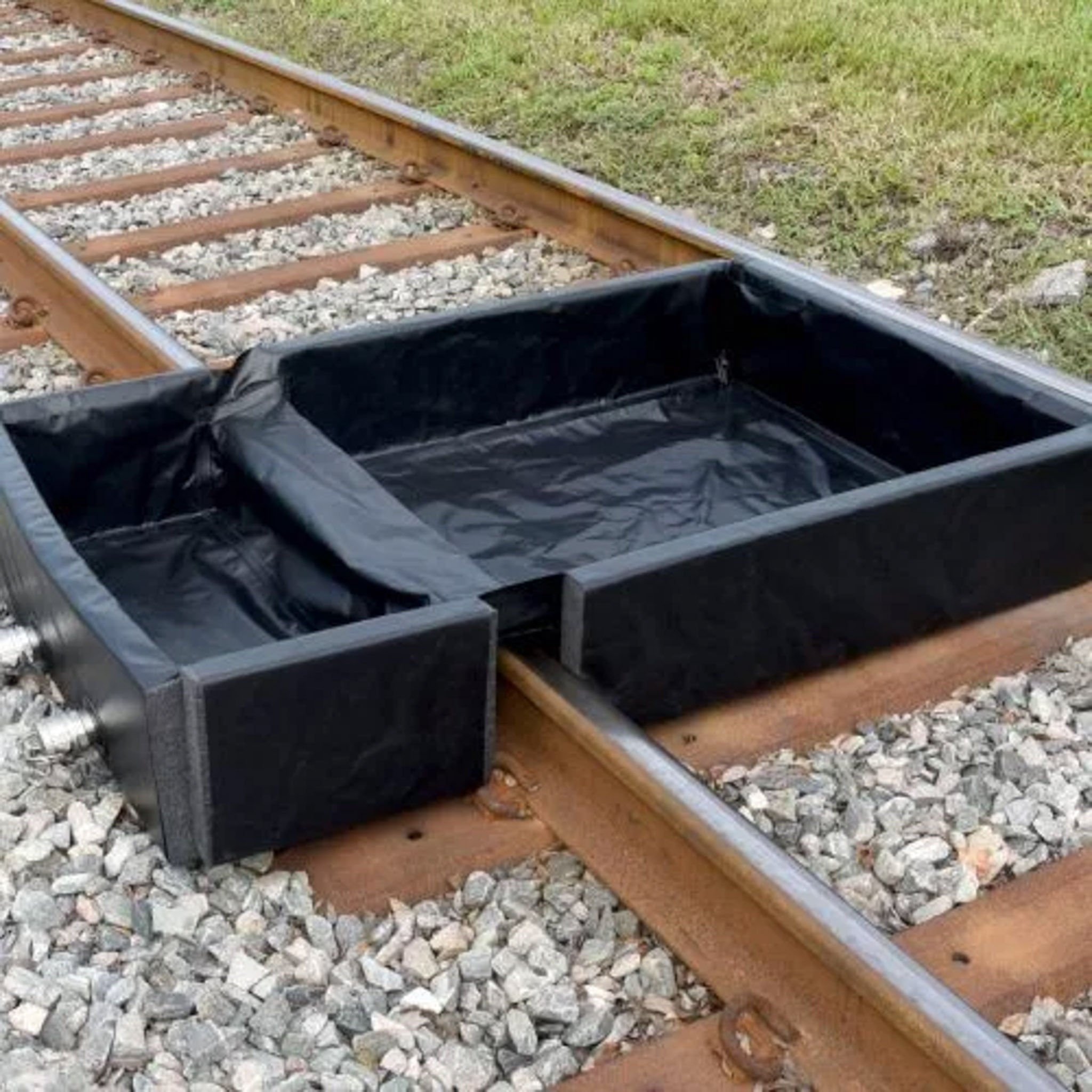

- Lightweight and portable spill containment unit is easily placed under leaking/spilling railcars.

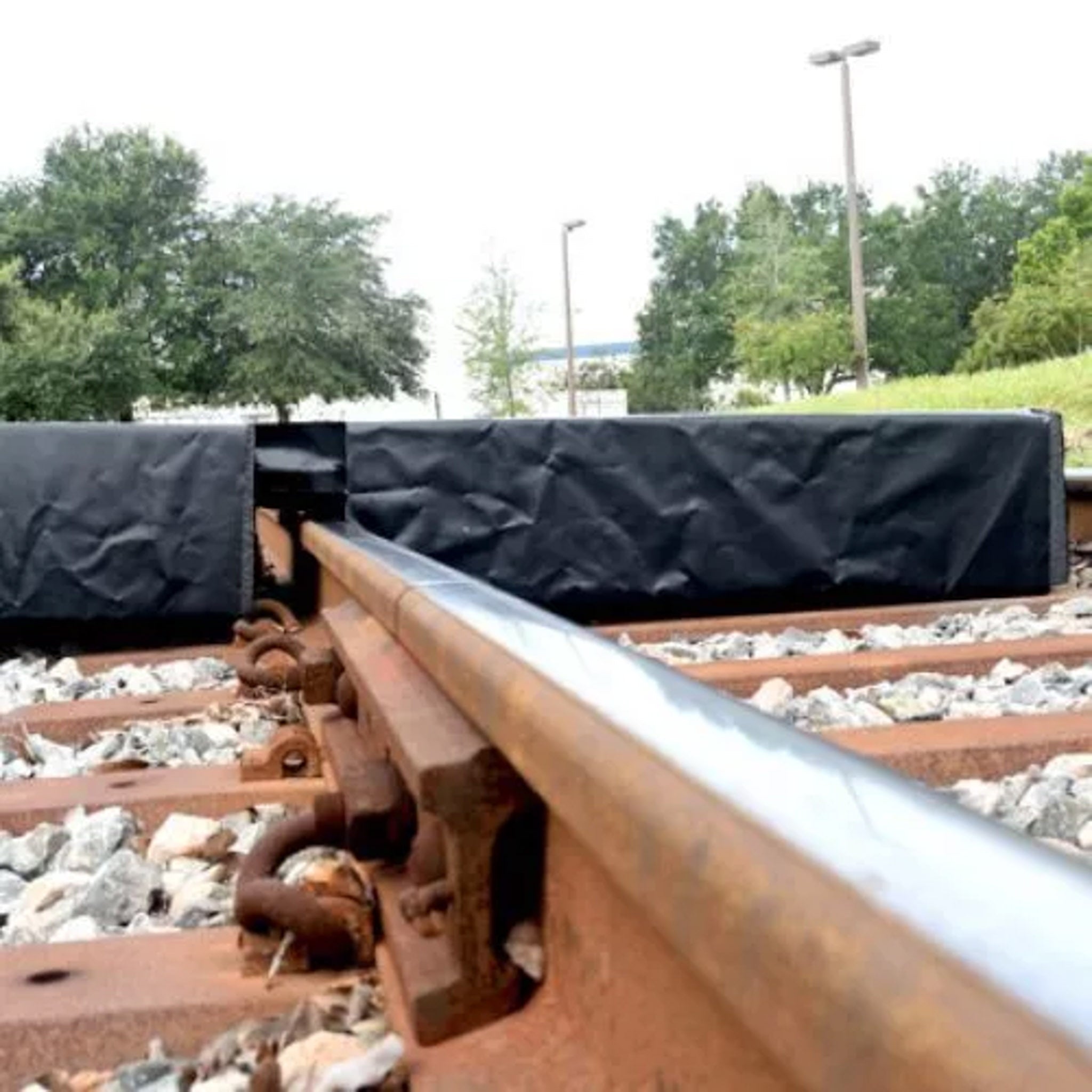

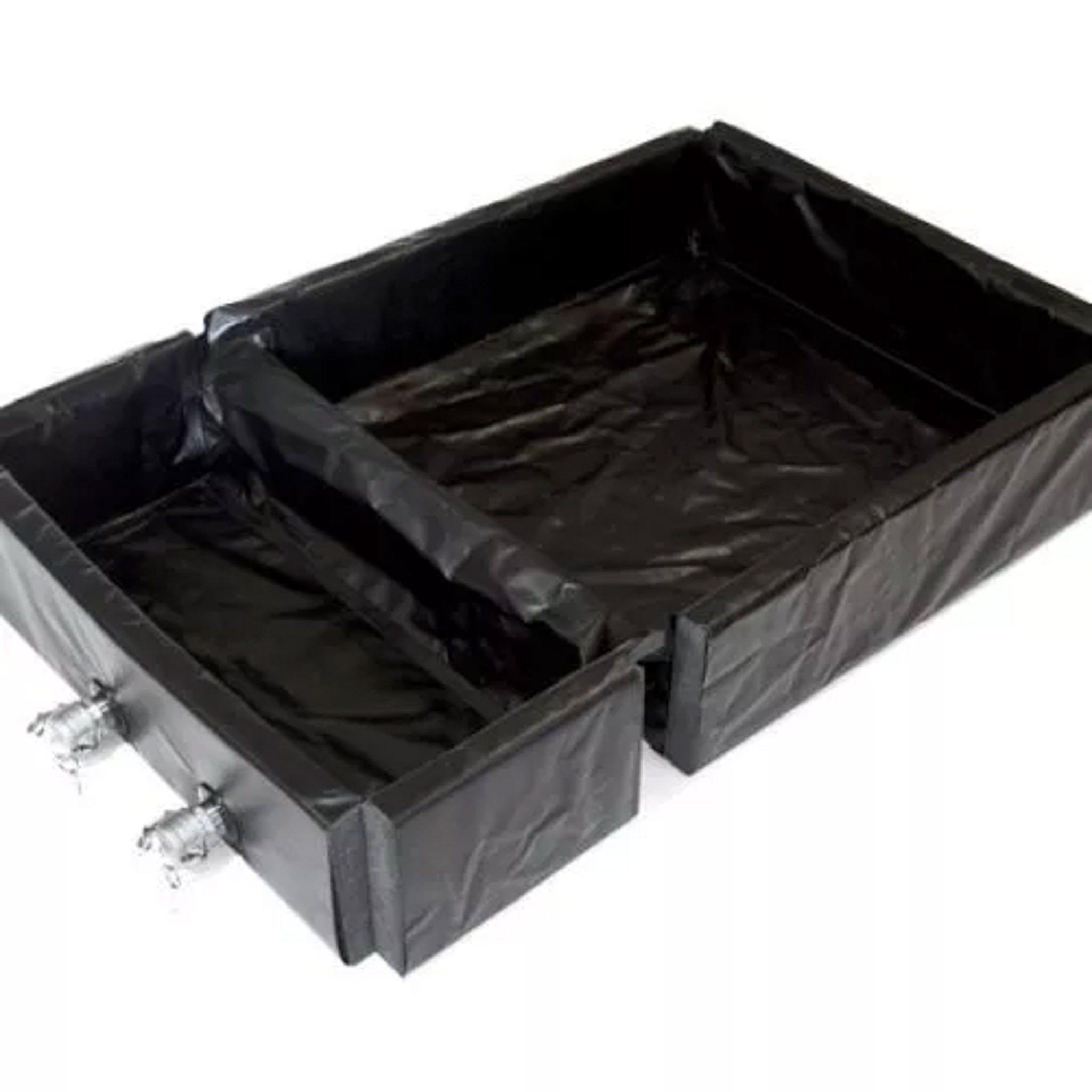

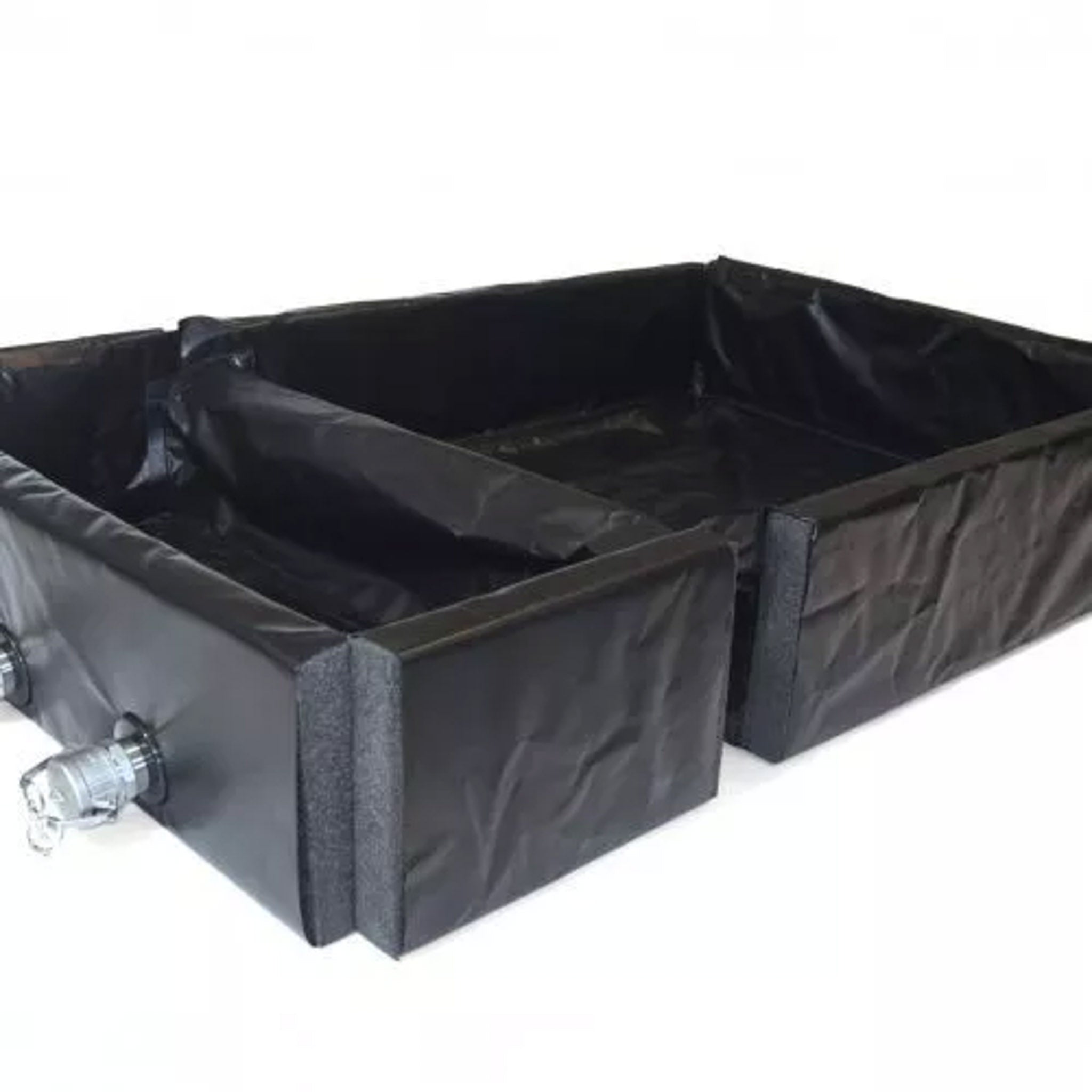

- Dual-sump design provides protection for area on either side of the rail.

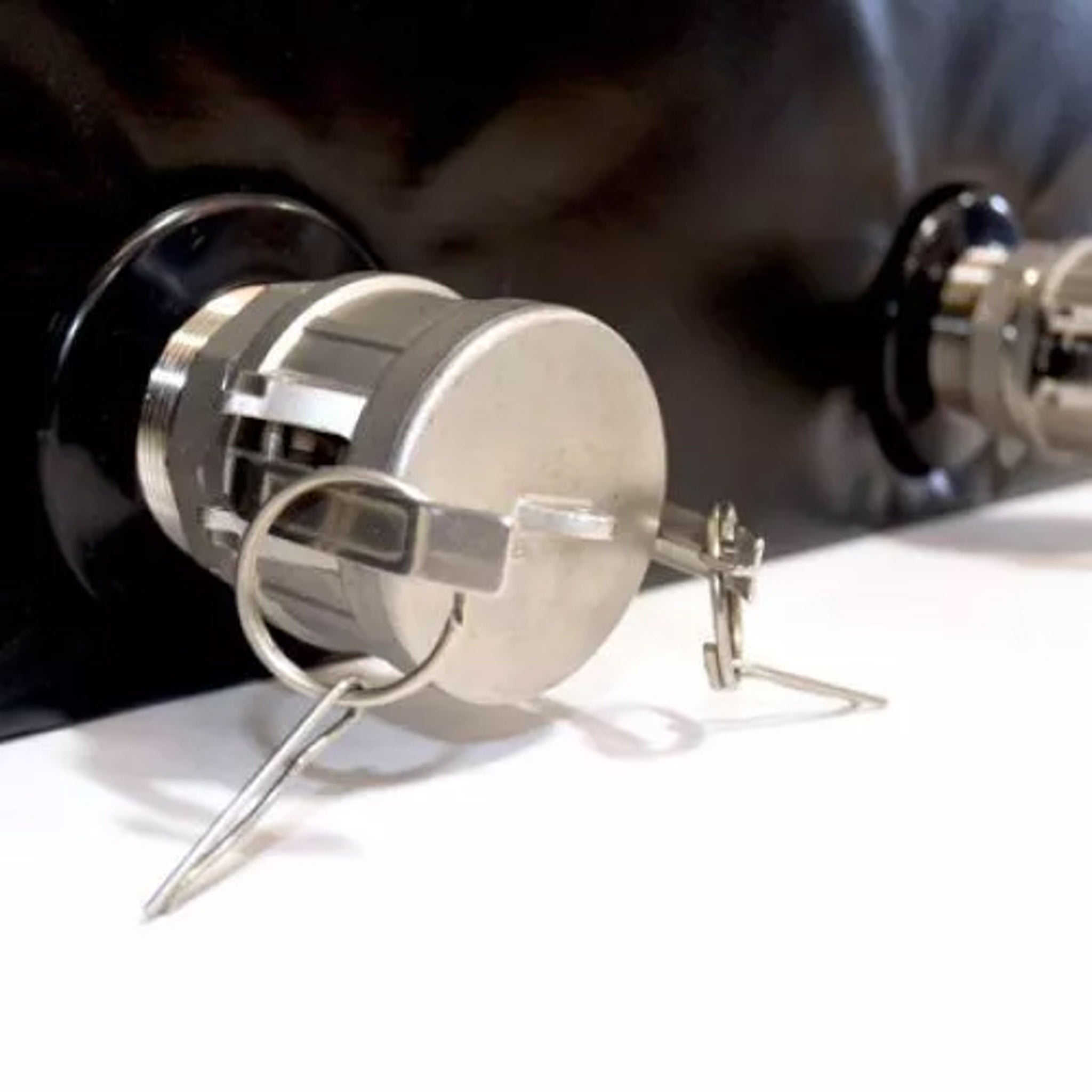

- Two (2) stainless steel camlock fittings allow quick and leak-free drainage of spilled chemicals.
- Closed-cell polyethylene (LLDPE) foam provides secure sidewall structure.
- Durable 40 oz. (42 mil) PVC construction withstands harsh railroad conditions and provides excellent chemical compatibility.
Additional Information
- The berm is made using 40 oz. (42 mil) PVC which is very durable and provides excellent chemical resistance
- While the Ultra-Track Berm is built to last with heavy-duty materials and components, it weighs in at only 24 lbs. (10.9 Kg) so it can be easily transported to wherever it is needed.
- The steel connectors are camlock fittings and they are used to connect hoses to in case of a large or catastrophic spill. The hoses can be used to channel spillage to a holding tank or other containment area.
Ultra-Track Berm

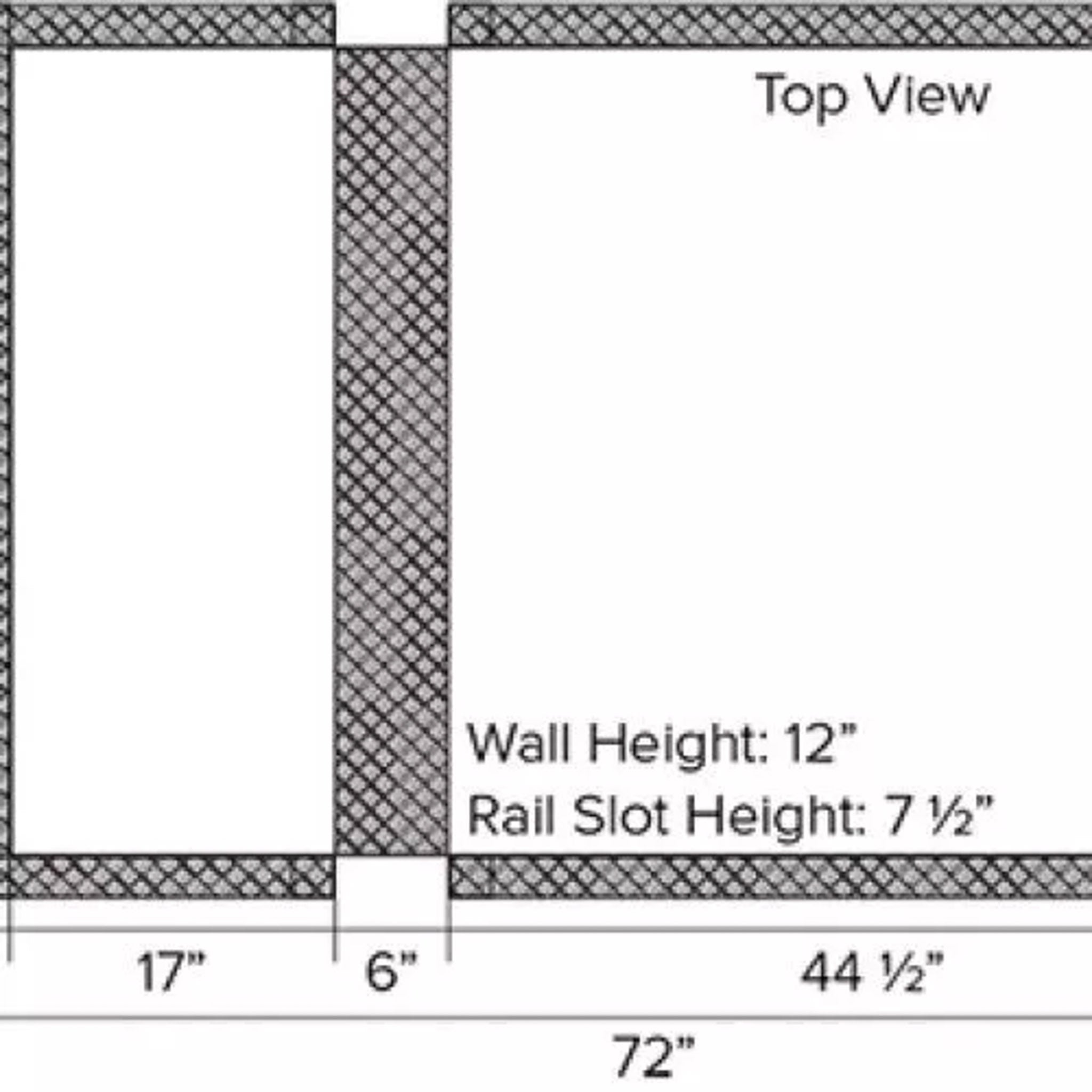

| Part # | Model | Dimensions in. (mm) | Containment Capacity gal. (L) | Weight lbs. (kg) |
|---|---|---|---|---|
| UT-8490 | 40 oz. (42 Mil) PVC | 72 x 48 x 12 (1828.8 x 1219.2 x 304.8) | 144 (545) | 24.0 (10.9) |
WARNING: Part UT-8490 can expose you to chemicals including Di(2-ethylhexyl) phthalate (DEHP) which is known to the state of California to cause cancer, birth defects, or reproductive harm. For more information, please visit www.P65Warnings.ca.gov
